Запчасти Case CX210BNLC (08-21) - PILOT CONTROL LINES, PARTITION - TWO WAY (08) - HYDRAULICS

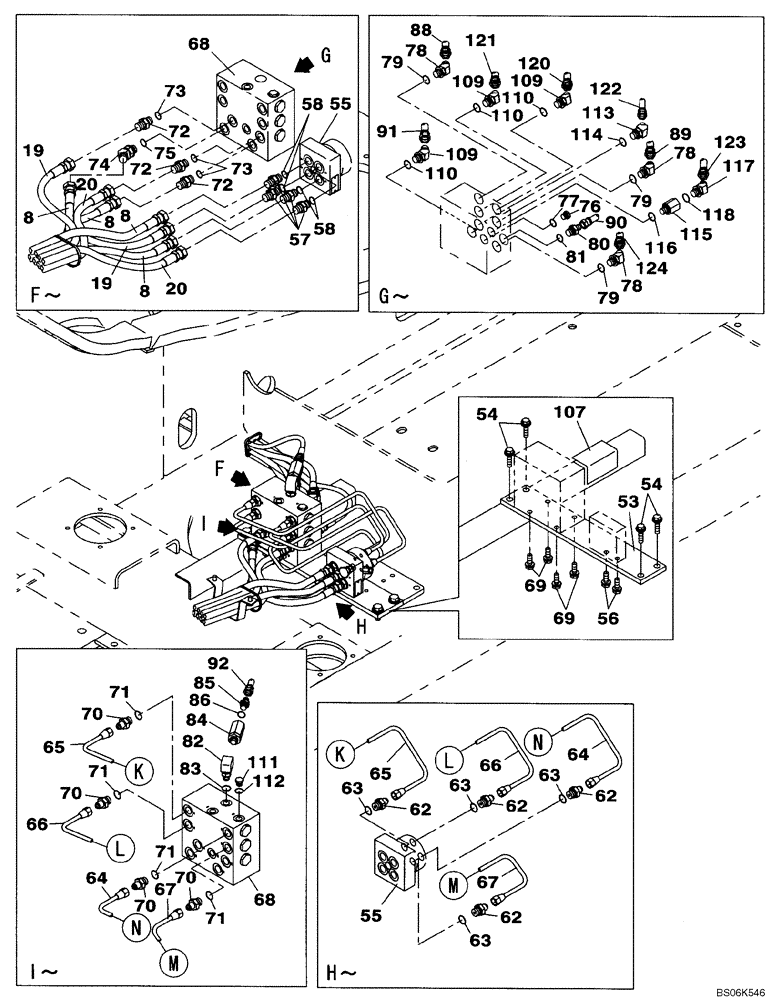

Схема запчастей Case CX210BNLC - (08-21) - PILOT CONTROL LINES, PARTITION - TWO WAY (08) - HYDRAULICS
67
72
88
66
71
62
85
79
8
58
64
70
72
78
109
63
112
109
115
110
78
111
90
63
63
81
75
118
62
64
73
122
92
55
65
58
20
69
71
19
110
77
80
54
62
70
71
79
72
84
107
83
121
54
69
56
86
68
114
109
68
53
70
120
89
63
65
123
73
71
8
116
82
76
70
8
74
91
124
19
67
117
110
20
78
113
79
57
66
8
62
55

Артикул

Название

Примечание

Количество

8

159211A1

HYDRAULIC HOSE

2000 mm (78-3/4 in)

4шт.

19

159217A1

HYDRAULIC HOSE

1850 mm (72-7/8 in)

2шт.

20

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

2шт.

53

KHJ13750

SUPPORT

1шт.

54

166352A1

BOLT

4шт.

55

KHJ12080

CONTROL BLOCK

Component Parts Not Available At Time Of Printing

1шт.

56

166347A1

BOLT,Sems, M10 x 30mm

2шт.

57

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 58

4шт.

58

154475A1

O-RING

1шт.

62

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 63

4шт.

63

154475A1

O-RING

1шт.

64

KHJ15390

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

65

KHJ15400

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

66

KHJ15410

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

67

KHJ15420

HYD TUBE,6.6 mm ID x 8 mm OD

1шт.

68

KRJ10350

VALVE SECTION

See Figure 08-80

1шт.

69

166347A1

BOLT,Sems, M10 x 30mm

4шт.

70

KHJ1821

NIPPLE, LUBE

NIPPLE Incl. 71

4шт.

71

154475A1

O-RING

1шт.

72

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 73

3шт.

73

154475A1

O-RING

1шт.

74

157584A1

ELBOW

Incl. 75

1шт.

75

154475A1

O-RING

1шт.

76

159002A1

PLUG

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

157584A1

ELBOW

Incl. 79

3шт.

79

154475A1

O-RING

1шт.

80

153378A1

ADAPTER

Incl. 81

1шт.

81

154475A1

O-RING

1шт.

82

KHJ0719

ELBOW

Incl. 83

1шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

KHJ10790

FILTER SCREEN

1шт.

85

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 86

1шт.

86

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

89

KHJ2318

HOSE

1400 mm (55-1/8 in)

1шт.

90

KHJ11540

HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm

1шт.

91

KHJ11570

HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm

1шт.

92

KHJ2327

HOSE

1550 mm (61 in)

1шт.

107

KRJ11780

RUBBER PAD

1шт.

109

157584A1

ELBOW

Incl. 110

3шт.

110

154475A1

O-RING

1шт.

111

159002A1

PLUG

Incl. 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

KHJ1445

ELBOW

Incl. 114

1шт.

114

154475A1

O-RING

1шт.

115

KHJ1584

UNION

Incl. 116

1шт.

116

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

117

157584A1

ELBOW

Incl. 118

1шт.

118

154475A1

O-RING

1шт.

120

KHJ15490

HYDRAULIC HOSE

1350 mm (53-1/8 in)

1шт.

121

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

122

KHJ2054

HOSE

1200 mm (47-3/16 in)

1шт.

123

KHJ11600

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

124

KHJ11580

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

Выбрано товаров: 55
