Запчасти Case CX210BLR (08-24) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

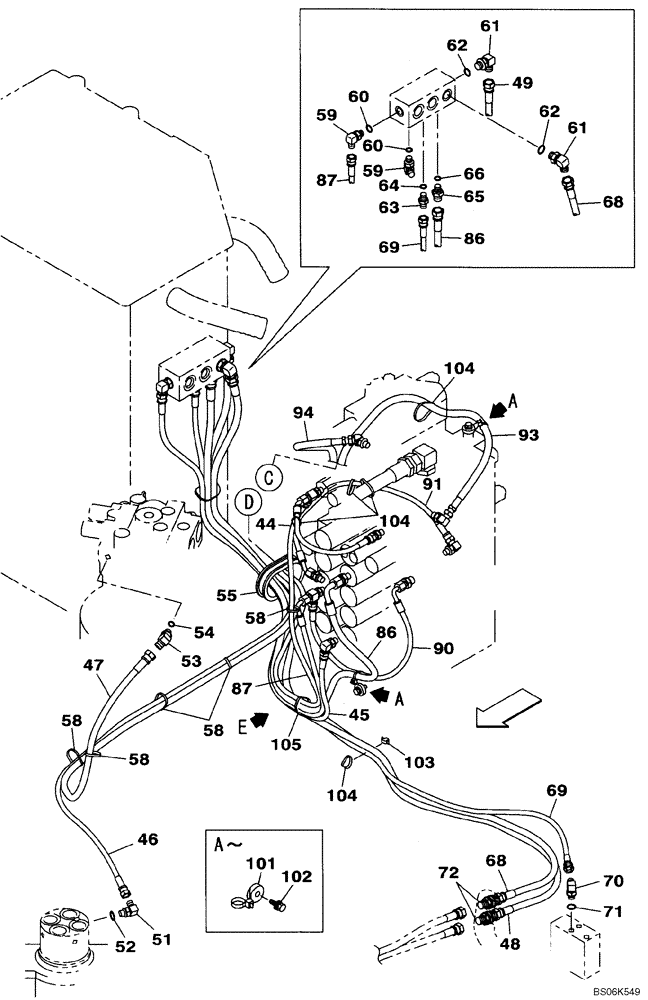

Схема запчастей Case CX210BLR - (08-24) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS
68
86
104
60
47
94
70
60
87
103
46
53
101
68
58
59
90
45
69
58
61
51
104
69
49
55
66
62
64
44
87
58
91
59
72
71
54
102
105
61
62
65
52
93
86
104
63
48
58

Артикул

Название

Примечание

Количество

44

KHJ14920

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm

1шт.

45

KHJ2097

HOSE

1750 mm (68-7/8 in)

1шт.

46

KHJ2166

HOSE,6.3mm ID x 2300mm L

2300 mm (90-9/16 in)

1шт.

47

KHJ14900

HYDRAULIC HOSE,9.52 mm ID x 2600.00 mm

1шт.

48

KHJ2107

HOSE,9.5mm ID x 2400mm L

2400 mm (94-1/2 in)

1шт.

49

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

51

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 52

1шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

53

161087A1

ELBOW

Incl. 54

1шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

MMA1011

RUBBER SEAL

1шт.

58

150496A1

MOUNTING CLIP

1шт.

59

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 60

2шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

61

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 62

2шт.

62

154475A1

O-RING

1шт.

63

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

152747A1

ADAPTER

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

KHJ2625

HOSE

1шт.

69

KHJ2255

HOSE

1шт.

70

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

162826A1

ADAPTER

2шт.

86

KHJ2106

HOSE

1600 mm (63 in)

1шт.

87

KHJ11170

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

1шт.

90

KHJ2181

HOSE

580 mm (22-13/16 in)

1шт.

91

KHJ2244

HOSE

600 mm (23-5/8 in)

1шт.

93

KHJ1231

HYDRAULIC HOSE,6.35 mm ID x 1800.00 mm

1шт.

94

KHJ12370

HYDRAULIC HOSE,6.35 mm ID x 2650.00 mm

1шт.

101

KHR2584

CLAMP

4шт.

102

KHJ1215

BOLT,Spcl

4шт.

103

KHR10220

MOUNTING CLIP

1шт.

104

150496A1

MOUNTING CLIP

5шт.

105

150498A1

MOUNTING CLIP

1шт.

Выбрано товаров: 36
