Запчасти Case CX210BLR (08-22) - PILOT CONTROL LINES, CONTROL VALVE - TWO WAY (08) - HYDRAULICS

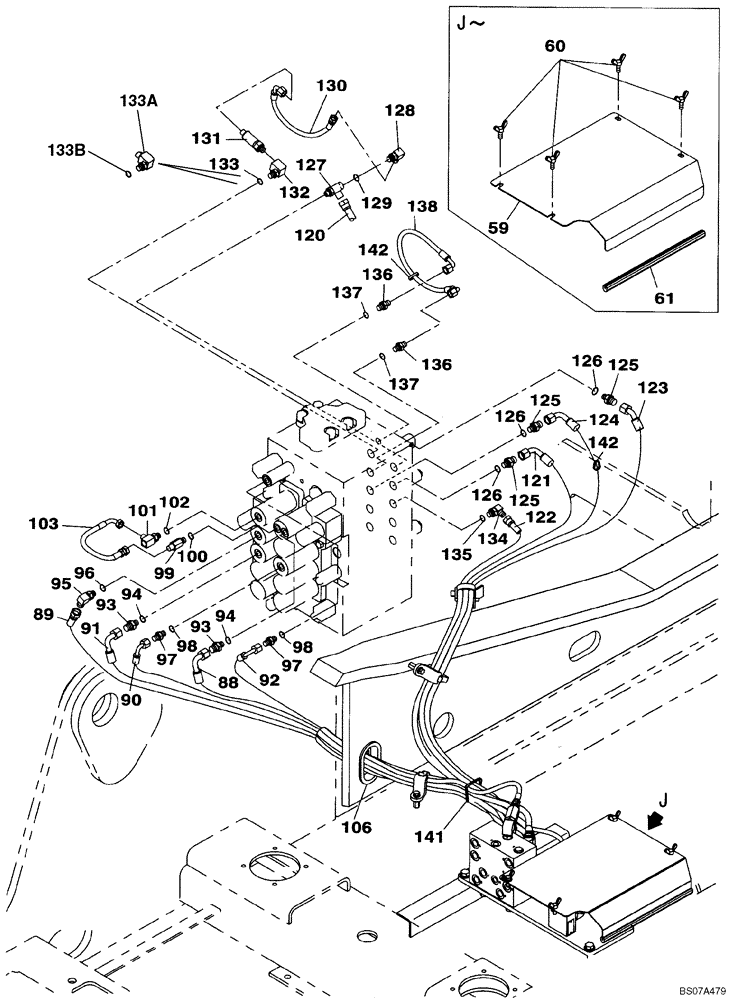

Схема запчастей Case CX210BLR - (08-22) - PILOT CONTROL LINES, CONTROL VALVE - TWO WAY (08) - HYDRAULICS
97
133
98
121
133a
123
59
88
138
132
95
125
94
120
133b
89
125
129
102
127
142
100
106
137
137
98
94
134
60
142
136
128
135
96
61
93
97
101
130
126
131
125
92
103
126
122
91
136
126
141
99
124
93
90

Артикул

Название

Примечание

Количество

59

KRJ12530

COVER

1шт.

60

KHN17030

SPECIAL BOLT

Wing Head

4шт.

61

KRN11120

SEAL PROTECTION

1шт.

88

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

89

KHJ2318

HOSE

1400 mm (55-1/8 in)

1шт.

90

KHJ11540

HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm

1шт.

91

KHJ11570

HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm

1шт.

92

KHJ2327

HOSE

1550 mm (61 in)

1шт.

93

152747A1

ADAPTER

Incl. 94

2шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

153559A1

ELBOW

Incl. 96

1шт.

96

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 98

2шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

162554A1

FITTING

Incl. 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 102, Replaces KHJ2773

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ1387

HYDRAULIC HOSE,6.35 mm ID x 320.00 mm

1шт.

106

KRH10610

SEAL PROTECTION

1шт.

120

KHJ15490

HYDRAULIC HOSE

1350 mm (53-1/8 in)

1шт.

121

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

122

KHJ2054

HOSE

1200 mm (47-3/16 in)

1шт.

123

KHJ11600

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

124

KHJ11580

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

125

152747A1

ADAPTER

Incl. 126

3шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

127

KHJ11560

TEE

1шт.

128

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 129

1шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

130

KHJ2084

HOSE

1шт.

131

KHJ1399

VALVE, CUSHION

See Figure 08-70; If Used

1шт.

132

KHJ0719

ELBOW

Incl. 133; Used With Ref 131

1шт.

133

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133a

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 133B; Used In Place Of Ref 120 - 122

1шт.

133b

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

134

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 135

1шт.

135

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

136

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 137

2шт.

137

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

138

KHJ2350

HOSE

1шт.

141

150498A1

MOUNTING CLIP

1шт.

143

150496A1

MOUNTING CLIP

2шт.

Выбрано товаров: 43
