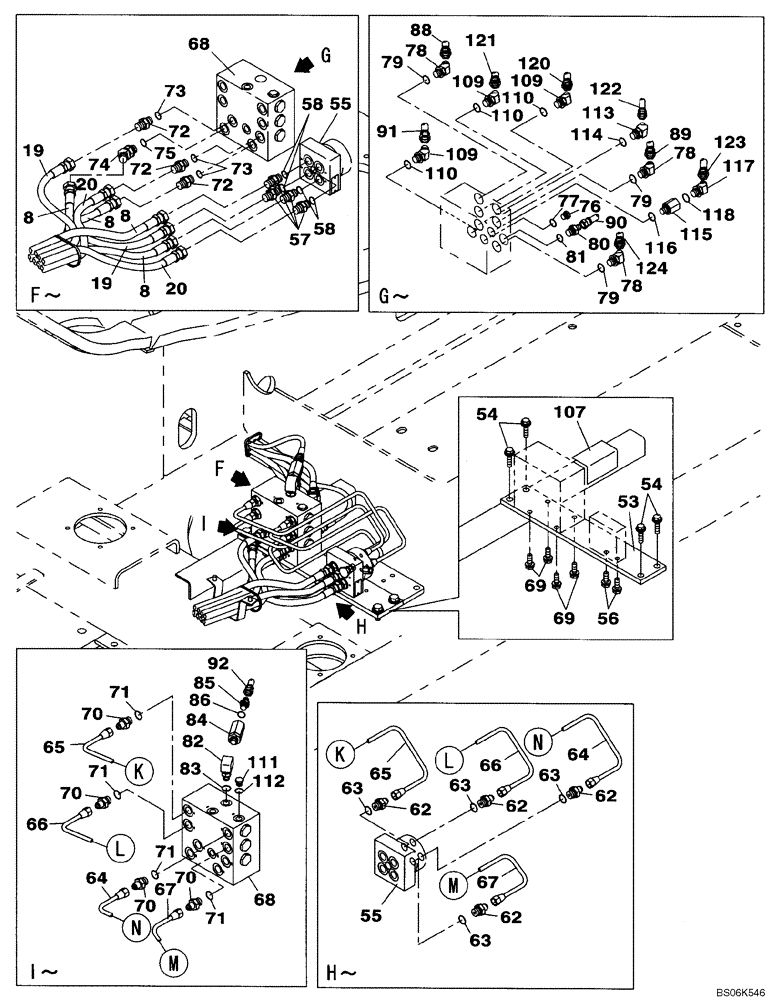

Запчасти Case CX210BLR (08-21) - PILOT CONTROL LINES, PARTITION - TWO WAY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
8
159211A1
HYDRAULIC HOSE
2000 mm (78-3/4 in)
4шт.
19
159217A1
HYDRAULIC HOSE
1850 mm (72-7/8 in)
2шт.
20
KRJ4381
HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm
2шт.
53
KHJ13750
SUPPORT
1шт.
54
166352A1
BOLT
4шт.
55
KHJ12080
CONTROL BLOCK
Component Parts Not Available At Time Of Printing
1шт.
56
166347A1
BOLT,Sems, M10 x 30mm
2шт.
57
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 58
4шт.
58
154475A1
O-RING
1шт.
62
KHJ1821
NIPPLE, LUBE
NIPPLE Incl. 63
4шт.
63
154475A1
O-RING
1шт.
64
KHJ15390
HYD TUBE,6.6 mm ID x 8 mm OD
1шт.
65
KHJ15400
HYD TUBE,6.6 mm ID x 8 mm OD
1шт.
66
KHJ15410
HYD TUBE,6.6 mm ID x 8 mm OD
1шт.
67
KHJ15420
HYD TUBE,6.6 mm ID x 8 mm OD
1шт.
68
KRJ10350
VALVE SECTION
See Figure 08-80
1шт.
69
166347A1
BOLT,Sems, M10 x 30mm
4шт.
70
KHJ1821
NIPPLE, LUBE
NIPPLE Incl. 71
4шт.
71
154475A1
O-RING
1шт.
72
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 73
3шт.
73
154475A1
O-RING
1шт.
74
157584A1
ELBOW
Incl. 75
1шт.
75
154475A1
O-RING
1шт.
76
159002A1
PLUG
Incl. 77
1шт.
77
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
78
157584A1
ELBOW
Incl. 79
3шт.
79
154475A1
O-RING
1шт.
80
153378A1
ADAPTER
Incl. 81
1шт.
81
154475A1
O-RING
1шт.
82
KHJ0719
ELBOW
Incl. 83
1шт.
83
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
84
KHJ10790
FILTER SCREEN
1шт.
85
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 86
1шт.
86
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
88
KHJ11590
HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm
1шт.
89
KHJ2318
HOSE
1400 mm (55-1/8 in)
1шт.
90
KHJ11540
HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm
1шт.
91
KHJ11570
HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm
1шт.
92
KHJ2327
HOSE
1550 mm (61 in)
1шт.
107
KRJ11780
RUBBER PAD
1шт.
109
157584A1
ELBOW
Incl. 110
3шт.
110
154475A1
O-RING
1шт.
111
159002A1
PLUG
Incl. 112
1шт.
112
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
113
KHJ1445
ELBOW
Incl. 114
1шт.
114
154475A1
O-RING
1шт.
115
KHJ1584
UNION
Incl. 116
1шт.
116
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
117
157584A1
ELBOW
Incl. 118
1шт.
118
154475A1
O-RING
1шт.
120
KHJ15490
HYDRAULIC HOSE
1350 mm (53-1/8 in)
1шт.
121
KHJ11530
HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm
1шт.
122
KHJ2054
HOSE
1200 mm (47-3/16 in)
1шт.
123
KHJ11600
HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm
1шт.
124
KHJ11580
HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm
1шт.
Выбрано товаров: 55
