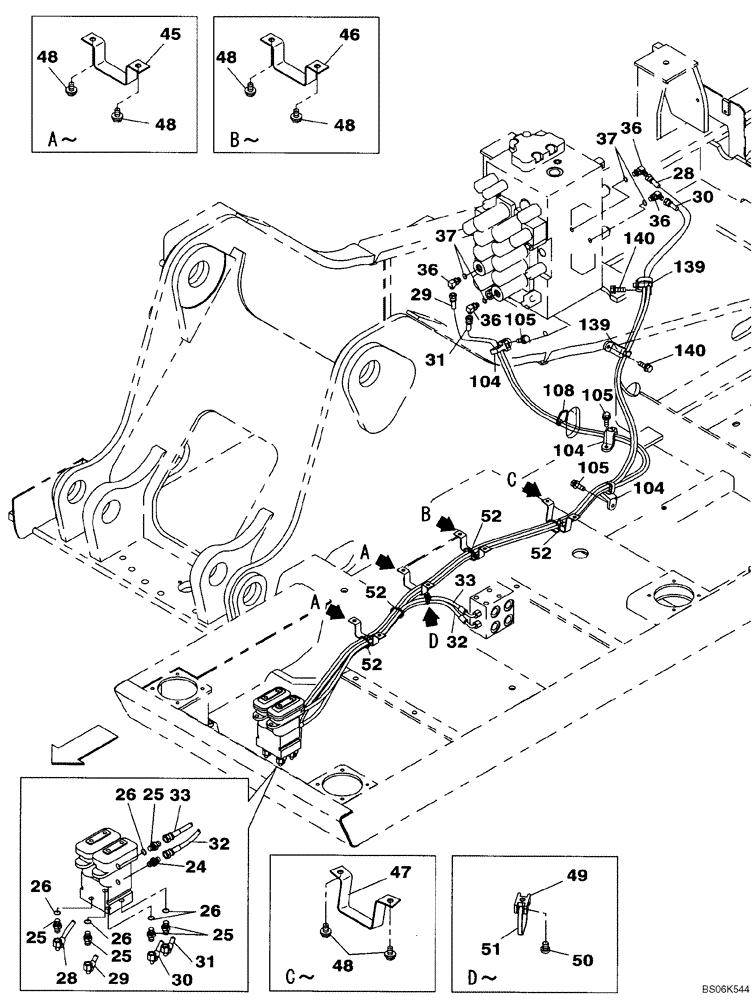

Запчасти Case CX210BLR (08-19) - PILOT CONTROL LINES, TRAVEL - TWO WAY (08) - HYDRAULICS

24

161841A1

HYD CONNECTOR

1шт.

25

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 26

5шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

KHJ2248

HOSE

3000 mm (118-1/8 in)

1шт.

29

KHJ2199

HOSE

2950 mm (116-1/8 in)

1шт.

30

KHJ2199

HOSE

2950 mm (116-1/8 in)

1шт.

31

KHJ2165

HOSE

2900 mm (114-3/16 in)

1шт.

32

KHJ2249

HOSE

950 mm (37-3/8 in)

1шт.

33

KHJ2249

HOSE

950 mm (37-3/8 in)

1шт.

36

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 37

4шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

KHJ1220

COLLAR

2шт.

46

KHJ13770

COLLAR

1шт.

47

KHJ13760

COLLAR

1шт.

48

166345A1

BOLT

8шт.

49

150860A1

COLLAR

1шт.

50

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

51

150496A1

MOUNTING CLIP

1шт.

52

150498A1

MOUNTING CLIP

4шт.

104

KHR2581

CLAMP

3шт.

105

KHJ1215

BOLT,Spcl

3шт.

108

150496A1

MOUNTING CLIP

1шт.

139

KHR2581

CLAMP

2шт.

140

KHJ1215

BOLT,Spcl

2шт.
