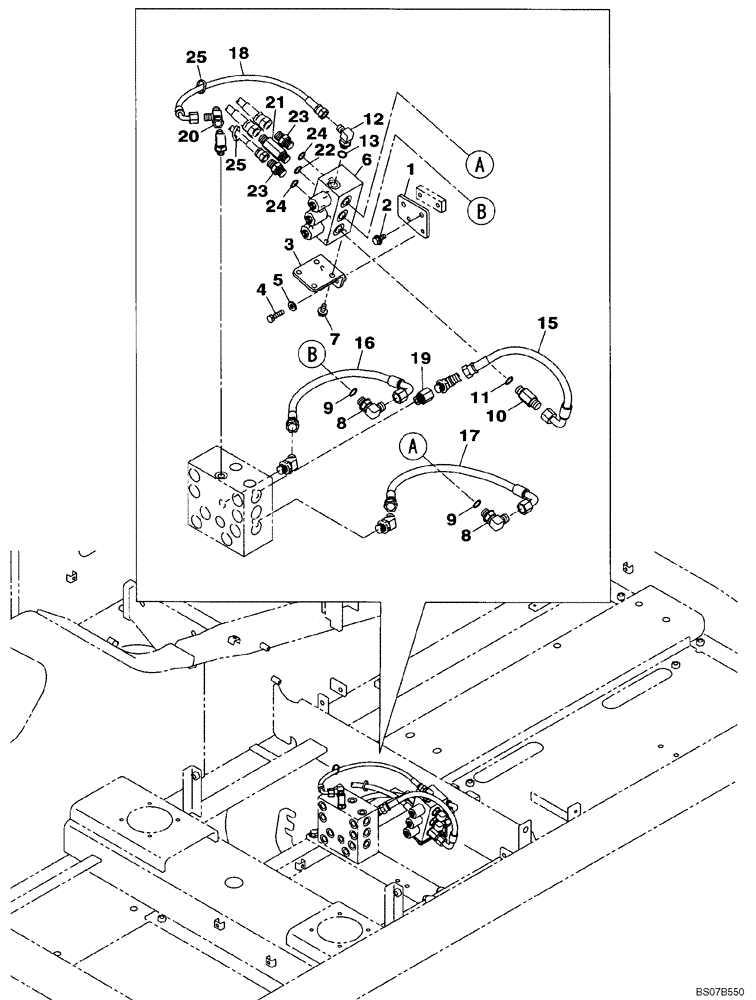

Запчасти Case CX210BLR (08-18) - PILOT CONTROL LINE - LONG REACH (08) - HYDRAULICS

1

KRJ19150

BRACKET

1шт.

2

166350A1

BOLT

2шт.

3

KRJ19160

BRACKET

1шт.

4

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

5

153081A1

WASHER

2шт.

6

KRJ19110

VALVE SECTION

1шт.

7

166350A1

BOLT

4шт.

8

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 9

2шт.

9

154475A1

O-RING

1шт.

10

159226A1

ADAPTER

Incl. 11

1шт.

11

154475A1

O-RING

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

KHJ2149

HOSE,9.5 mm ID x 360.00 mm

360 mm (14-3/16 in)

1шт.

16

KHJ2169

HOSE

450 mm (17-3/4 in)

1шт.

17

KHJ16390

HOSE

420 mm (16-1/2 in)

1шт.

18

KHJ2179

HOSE

450 mm (17-3/4 in)

1шт.

19

KHJ13790

STUD

1шт.

20

KHJ2130

TEE

1шт.

21

KAJ2351

FITTING

Incl. 22

1шт.

22

154475A1

O-RING

1шт.

23

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 24

2шт.

24

154475A1

O-RING

1шт.

25

150496A1

MOUNTING CLIP

1шт.
