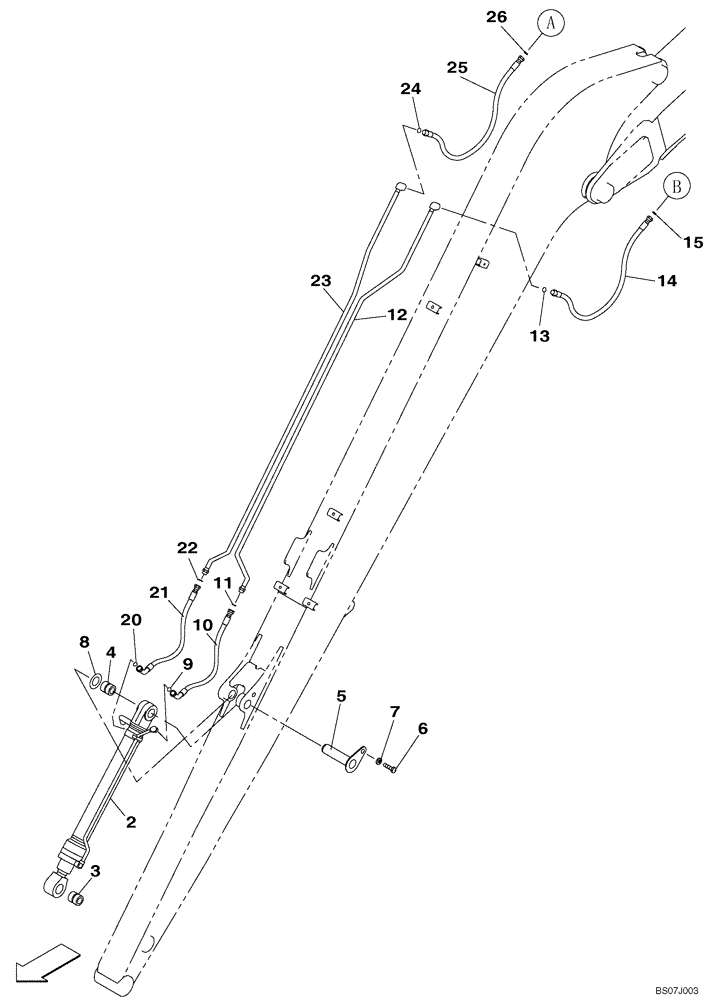

Запчасти Case CX210BLR (08-14) - HYDRAULICS - BUCKET, 6.40 M (21 FT) ARM (08) - HYDRAULICS

1

KNV12541

BUCKET CYLINDER

See Fig. 08-86

1шт.

1

KNV12541R

REMAN-HYD CYLINDER

Bucket

1шт.

1

KNV12541C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

KNV1139

SELF LUB RING

1шт.

4

KNV1141

SELF LUB RING

1шт.

5

KBV16930

PIN

1шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

7

157141A1

WASHER

1шт.

8

160734A1

SHIM

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

10

KRV14230

HYDRAULIC HOSE,900.00 mm

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

12

KRV24280

HYD TUBE

L

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

14

KLV0449

HOSE ASSY.,19.00 mm ID x 1700.00 mm

Replaces KRV19730, 1500 mm

1шт.

15

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

21

KRV14230

HYDRAULIC HOSE,900.00 mm

1шт.

22

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

23

KRV24270

HYD TUBE

1шт.

24

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

25

KLV0449

HOSE ASSY.,19.00 mm ID x 1700.00 mm

Replaces KRV19730, 1500 mm

1шт.

26

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.
