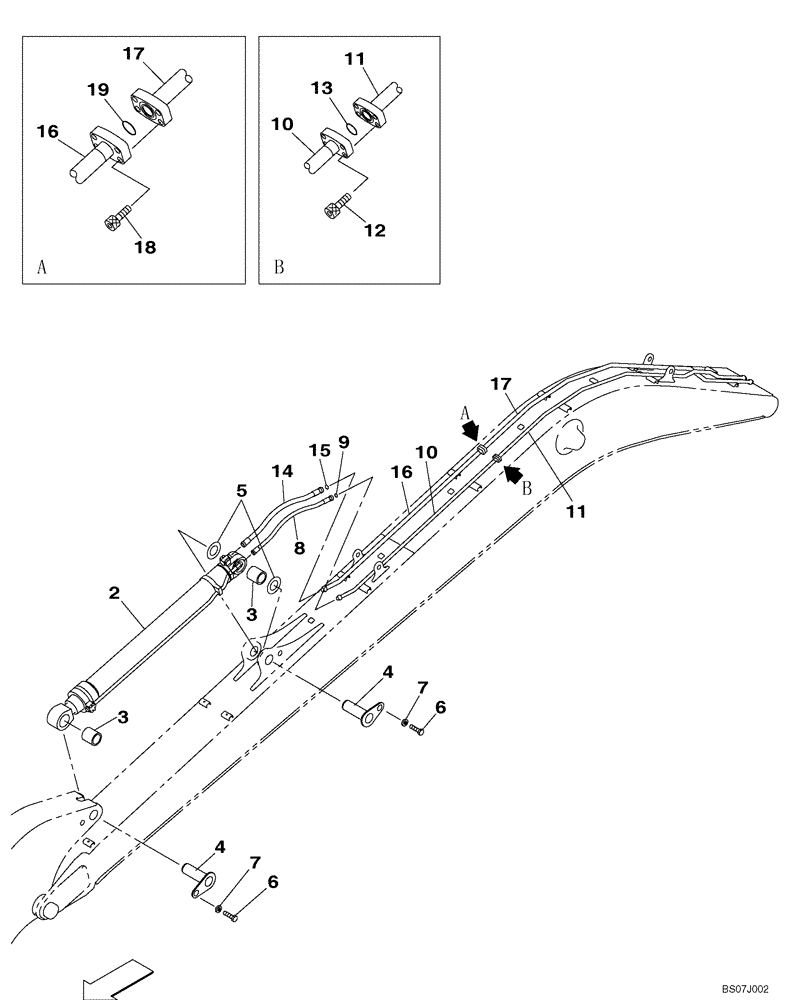

Запчасти Case CX210BLR (08-13) - HYDRAULICS - ARM CYLINDER LINE (8.70 M) (08) - HYDRAULICS

1

KRV24000

HYDRAULIC CYLINDER

Incl. 2, 3

1шт.

1

KRV24000R

REMAN-HYD CYLINDER

CX210BLR CRAWLER EXCAVATOR TIER 3 (NA) (2/07-)

1шт.

1

KRV24000C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

KBV1362

SELF LUB RING

2шт.

4

KRV24490

PIN

1шт.

4

KRV25420

PIN

1шт.

5

159451A1

SHIM

2шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

7

157141A1

WASHER

2шт.

8

KRV12780

HYDRAULIC HOSE,1000.00 mm

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KRV2895

HYD TUBE,20.8 mm ID x 27.2 mm OD

LH

1шт.

11

KRV24240

HYD TUBE

LH

1шт.

12

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

13

154528A1

O-RING

1шт.

14

KRV2495

HYDRAULIC HOSE,25.40 mm ID x 1000.00 mm

1шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

16

KRV2894

HYD TUBE,26 mm ID x 34 mm OD

RH

1шт.

17

KRV24230

HYD TUBE

RH

1шт.

18

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

19

154548A1

O-RING

1шт.
