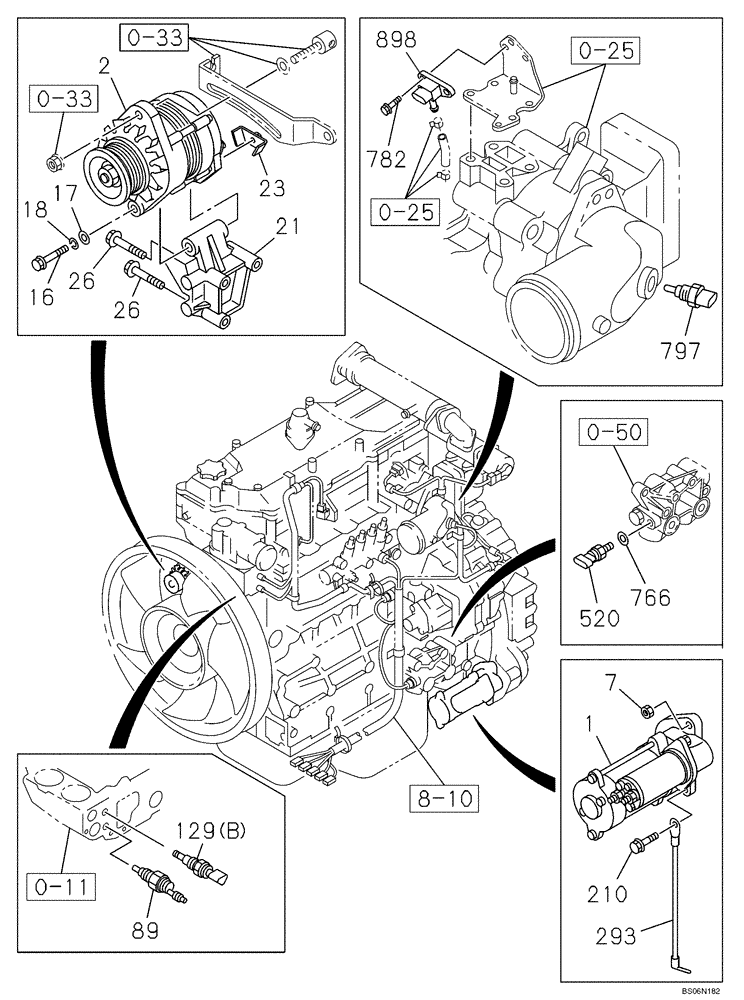

Запчасти Case CX210BLR (04-01) - ELECTRICAL ACCESSORIES - ENGINE (04) - ELECTRICAL SYSTEMS

0-11

REF

INSTRUCTION

See Figure 02-11

1шт.

0-25

REF

INSTRUCTION

See Figure 02-21

1шт.

0-33

REF

INSTRUCTION

See Figure 02-27

1шт.

0-50

REF

INSTRUCTION

See Figure 02-30

1шт.

8-10

REF

INSTRUCTION

See Figure 04-03

1шт.

1

87711539

STARTER MOTOR

MOTOR, STARTER, Replaces 87597118

1шт.

1

87711539R

REMAN-STARTER

CX210BLR CRAWLER EXCAVATOR TIER 3 (NA), MOTOR, STARTER (2/07-)

1шт.

1

87711539C

CORE-STARTER

Return Number

1шт.

2

87709230

ALTERNATOR

GENERATOR, Replaces 87560108

1шт.

87709230R

REMAN-ALTERNATOR

CX210BLR TIER 3 (2/07-)

1шт.

87709230C

CORE-ALTERNATOR

Return Number

1шт.

7

87597755

NUT

2шт.

16

289045A1

BOLT

1шт.

17

87597767

WASHER

1шт.

18

87597771

WASHER

1шт.

21

87597772

BRACKET

1шт.

23

437982A1

SUPPORT

1шт.

26

87597774

BOLT,Flng, M10 x 80mm

3шт.

89

289737A1

SENSOR

1шт.

129b

87336453

SENSOR

1шт.

210

87597864

BOLT

1шт.

293

289982A1

CABLE

1шт.

520

87597867

SENSOR

Engine Oil Pressure

1шт.

766

71455187

SEALING WASHER

1шт.

782

87597870

BOLT

2шт.

797

87378549

SENSOR

Air Temperature

1шт.

898

87379342

SENSOR

1шт.
