/ / / / / / / / (02-36) - ENGINE FLYWHEEL HOUSING

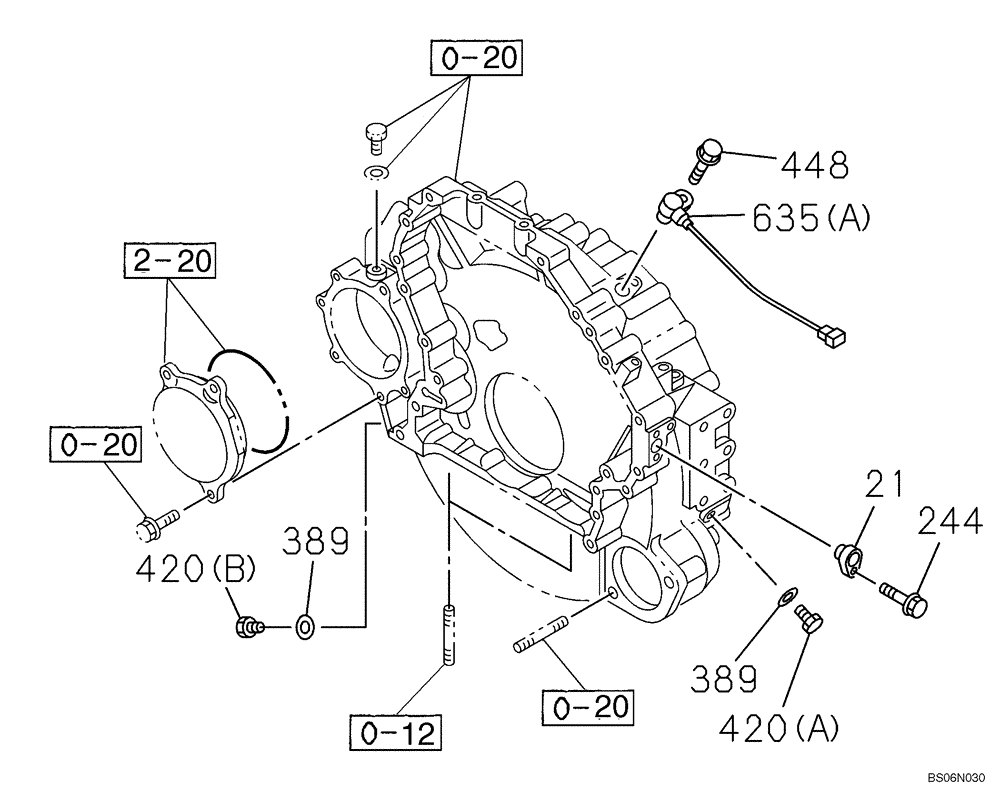

Запчасти Case CX210BLR (02-36) - ENGINE FLYWHEEL HOUSING (02) - ENGINE
0-20
0-20
0-20
389
420a
2-20
635a
244
21
0-12
420b
448
389
0-12
REF
INSTRUCTION
See Figure 02-13
1шт.
0-20
REF
INSTRUCTION
See Figure 02-20
1шт.
2-20
REF
INSTRUCTION
See Figure 02-35
1шт.
21
72215904
PLUG
1шт.
244
87595938
BOLT
1шт.
389
355158A1
GASKET
2шт.
420a
87597964
PLUG
1шт.
420b
71455254
PLUG
1шт.
448
87595952
BOLT
1шт.
635a
87336454
SENSOR
1шт.
