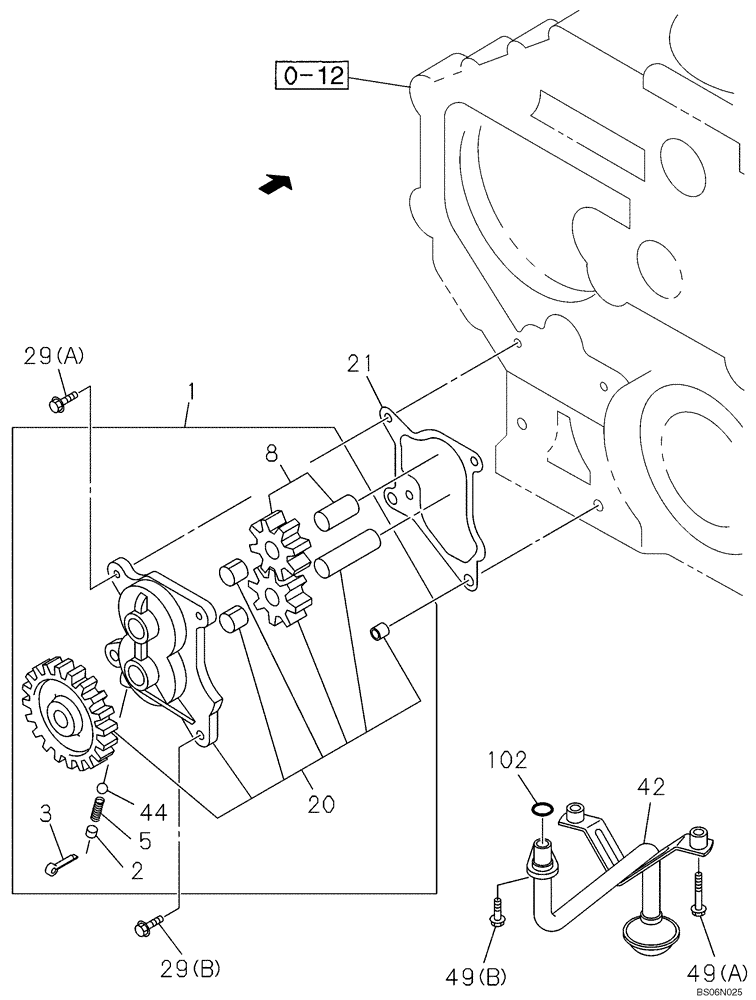

Запчасти Case CX210BLR (02-31) - OIL PUMP (02) - ENGINE

0-12

REF

INSTRUCTION

See Figure 02-13

1шт.

1

87597079

ENGINE OIL PUMP

Incl. 2, 3, 5, 8, 20, 44

1шт.

1

87597079R

REMAN-ENG OIL PUMP

CX210BLR CRAWLER EXCAVATOR TIER 3 (NA) (2/07-)

1шт.

1

87597079C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

289475A1

SEAT

1шт.

3

87380147

COTTER PIN

1шт.

5

289413A1

SPRING

1шт.

8

72109804

GEAR

1шт.

20

87597111

REPAIR KIT

1шт.

21

87597113

GASKET

1шт.

29a

87597122

BOLT

2шт.

29b

87597123

BOLT

2шт.

42

84211520

FILTER STRAINER

FILTER, STRAINER, Replaces 87597124

1шт.

44

289435A1

BALL

1шт.

49a

87597125

BOLT

2шт.

49b

87595884

BOLT

1шт.

102

87380148

GASKET

1шт.
