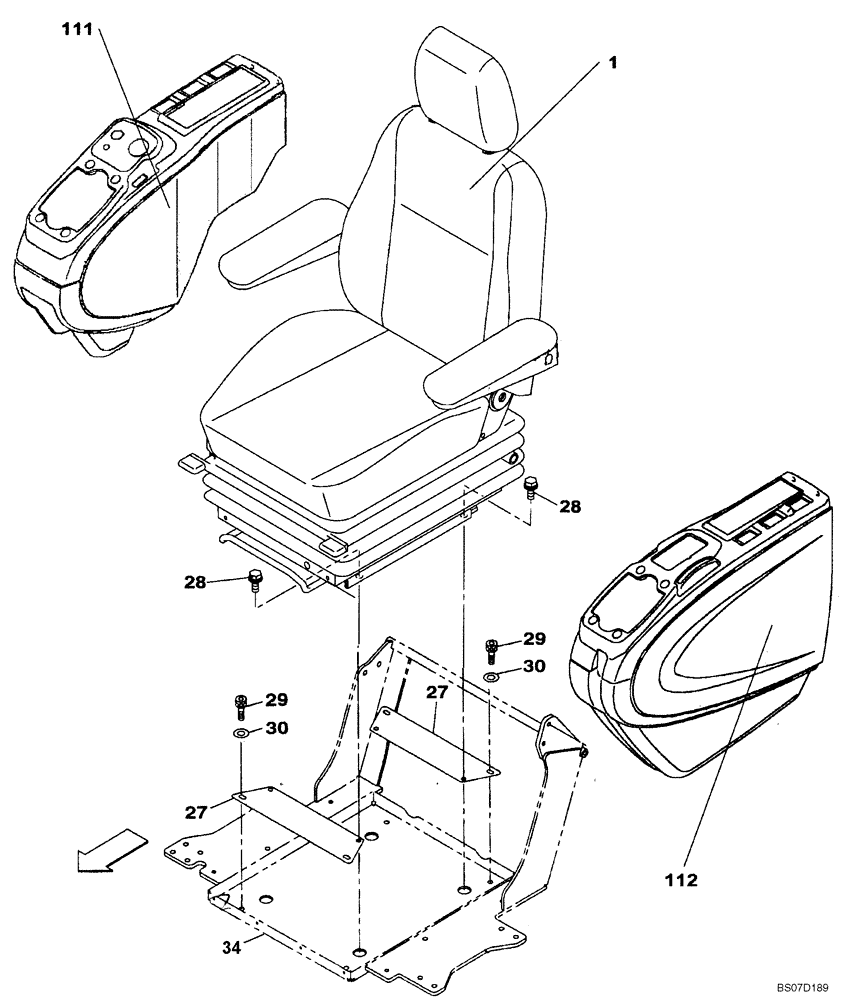

Запчасти Case CX210BLR (09-15B) - OPERATORS COMPARTMENT - SEAT AND CONTROL ARM MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

1шт.

See Figure(s) 09-022-00 01

1шт.

27

KHN13530

PLATE

2шт.

28

166350A1

BOLT

M8 x 20

4шт.

29

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

4шт.

30

892-11008

LOCK WASHER,8mm ID

4шт.

34

REF

INSTRUCTION

1шт.

See Figure(s) 09-021-00 01

1шт.

111

REF

INSTRUCTION

Right

1шт.

See Figure(s) 09-020-00 01

1шт.

112

REF

INSTRUCTION

Left

1шт.

See Figure(s) 09-019-00 01

1шт.
