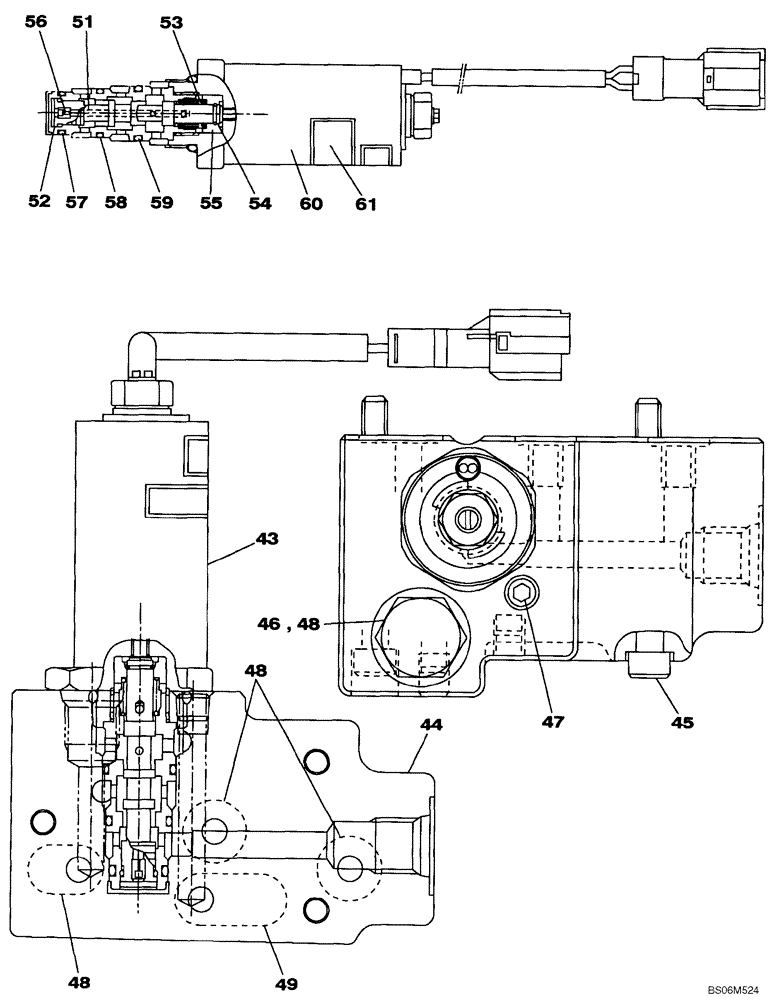

Запчасти Case CX210BLR (08-89) - KRJ10290 PUMP ASSY, HYDRAULIC - VALVE ASSY (08) - HYDRAULICS

KRJ10290

HYDRAULIC PUMP

Includes All Parts On Figures 08-87 - 08-91

1шт.

KRJ10290R

REMAN-HYD PUMP

CX210BLR CRAWLER EXCAVATOR TIER 3 (NA), VALVE ASSY (2/07-)

1шт.

KRJ10290C

CORE-HYDRAULIC PUMP

Return Number

1шт.

43

LJ014460

VALVE SECTION

Incl. 44 - 61

1шт.

44

NSS

NOT SOLD SEPARAT

Case

1шт.

45

862-6060

HEX SOC SCREW,M6 x 60mm, Cl 12.9

3шт.

46

155496A1

PLUG

1шт.

47

LK00003

PLUG

3шт.

48

LE013410

O-RING

4шт.

49

LE013420

O-RING

1шт.

NSS

NOT SOLD SEPARAT

Valve, Incl. 51 - 61

1шт.

51

NSS

NOT SOLD SEPARAT

Spool, Valve

1шт.

52

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

53

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

54

NSS

NOT SOLD SEPARAT

Ring

1шт.

55

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

56

NSS

NOT SOLD SEPARAT

Orifice

1шт.

57

155203A1

O-RING

1шт.

58

155204A1

O-RING

1шт.

59

160652A1

O-RING

1шт.

60

LL00055

SOLENOID

1шт.

61

NSS

NOT SOLD SEPARAT

Name Plate

1шт.
