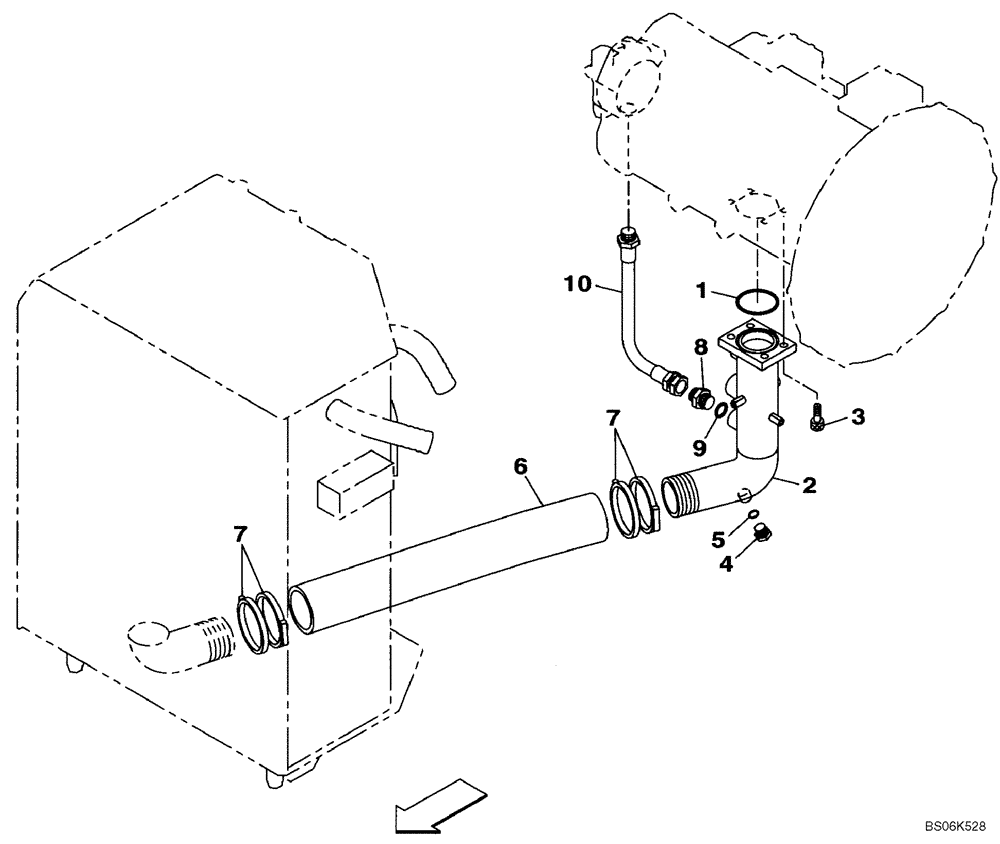

Запчасти Case CX210B (08-05) - HYDRAULICS - PUMP SUCTION LINE (08) - HYDRAULICS

1

154681A1

O-RING

1шт.

2

KRJ10580

HYD TUBE,67.9 mm ID x 76.3 mm OD

1шт.

3

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

4

159002A1

PLUG

Incl. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

KHJ11120

HYDRAULIC HOSE,76.30 mm ID x 620.00 mm

1шт.

7

150905A1

CLAMP

4шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 9

1шт.

9

154503A1

O-RING

1шт.

10

KBJ2809

HYDRAULIC HOSE,19.00 mm ID x 450.00 mm

1шт.
