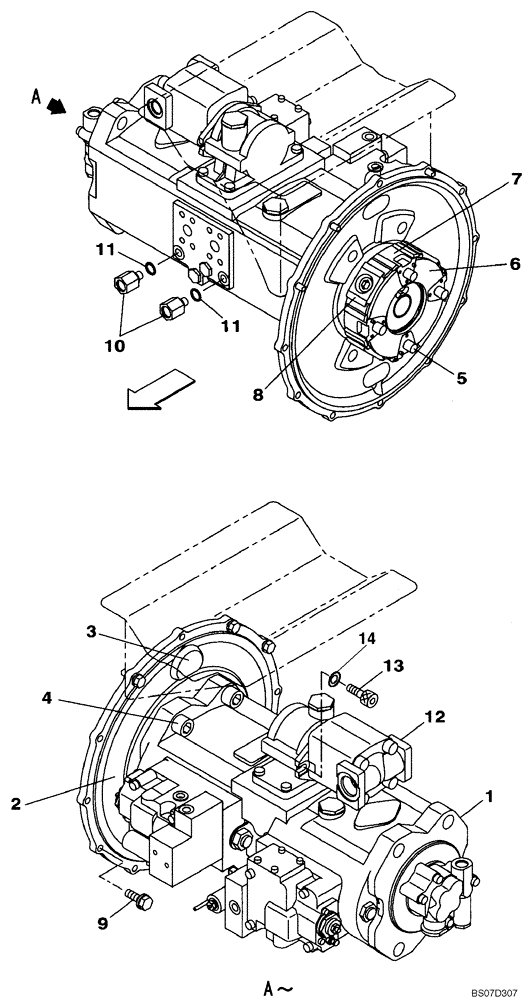

Запчасти Case CX210B (08-04) - PUMP ASSY, HYDRAULIC - WITH AUXILIARY HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KRJ15970

HYDRAULIC PUMP

See Figure 08-92 - 08-96

1шт.

1

KRJ15970R

REMAN-HYD PUMP

CX210B CRAWLER EXCAVATOR TIER 3 (NA), WITH AUXILIARY HYDRAULIC - COUPLING (1/07-)

1шт.

1

KRJ15970C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166370A1

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

5

KRJ10340

COUPLING

Incl. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Element

1шт.

7

NSS

NOT SOLD SEPARAT

Insert

4шт.

8

NSS

NOT SOLD SEPARAT

Insert

1шт.

9

166347A1

BOLT,Sems, M10 x 30mm

8-9шт.

10

KHJ18180

STUD

Incl. 11, Replaces KHJ11380

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KRJ10300

HYDRAULIC PUMP

See Figure 08-97

1шт.

12

KRJ10300R

REMAN-HYD PUMP

CX210B CRAWLER EXCAVATOR TIER 3 (NA), WITH AUXILIARY HYDRAULIC - COUPLING (1/07-)

1шт.

12

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

13

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

Replaces KHJ15090, 862-10030

2шт.

14

150409A1

WASHER

2шт.

15

154697A1

O-RING

Not Illustrated

1шт.
