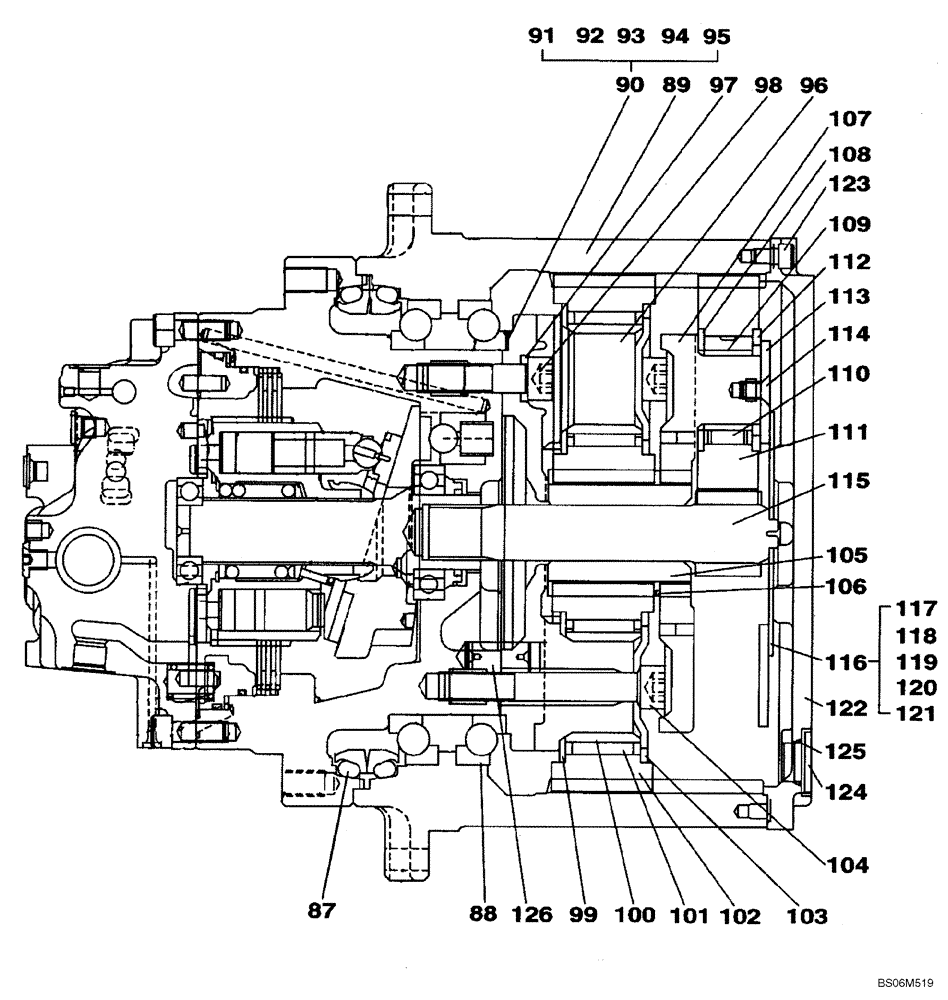

Запчасти Case CX210B (06-02) - MOTOR ASSY - GEAR ASSY, REDUCTION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
KRA10150
MOTO-REDUCTION GEAR
Includes All Parts On Figures 06-02 - 06-04
1шт.
KRA15440R
REMAN-MOTO REDUCTION
Reman For New P/N KRA10150
1шт.
KRA15440C
CORE-MOTO-REDUCTION UNIT
Return Number
1шт.
KRA12910
HYDRAULIC MOTOR
Includes All Parts On Figures 06-02 - 06-04
1шт.
1
NSS
NOT SOLD SEPARAT
Motor, Piston; Incl. 87 - 131, Also Includes Parts on Figure 06-03
1шт.
88
LB00548
BEARING
2шт.
89
NSS
NOT SOLD SEPARAT
Housing
1шт.
90
LH00254
SHIM KIT
Incl. 91 - 95
1шт.
91
NSS
NOT SOLD SEPARAT
Shim, 0.05 mm
1шт.
92
NSS
NOT SOLD SEPARAT
Shim, 0.1 mm
1шт.
93
NSS
NOT SOLD SEPARAT
Shim, 0.3 mm
1шт.
94
NSS
NOT SOLD SEPARAT
Shim, 0.5 mm
1шт.
95
NSS
NOT SOLD SEPARAT
Shim, 1.0 mm
1шт.
96
LS003340
SUPPORT
1шт.
97
LA00702
WASHER
8шт.
98
LA00703
BOLT
8шт.
99
LR00583
PLATE
4шт.
100
LB00549
RING RACE
4шт.
101
LB011790
NEEDLE BEARING
4шт.
102
LC00163
SUN GEAR
4шт.
103
LR015040
THRUST PLATE
4шт.
104
LA00704
BOLT
4шт.
105
LC002880
SUN GEAR
1шт.
106
LA00705
RING, SNAP
RING SNAP
1шт.
107
LS003350
SUPPORT
1шт.
108
LR00585
PLATE
3шт.
109
LB011800
BEARING
3шт.
110
LB011810
NEEDLE BEARING
3шт.
111
LC002890
IDLER PINION
3шт.
112
LR00586
PLATE
3шт.
113
LR015050
THRUST PLATE
1шт.
114
LV00029
SCREW
3шт.
115
LC002900
GEAR
1шт.
116
LR00588
DISC
Incl. 117 - 121
1шт.
117
NSS
NOT SOLD SEPARAT
Plate, Thrust; 3.6 mm
1шт.
118
NSS
NOT SOLD SEPARAT
Plate, Thrust; 2.3 mm
1шт.
119
NSS
NOT SOLD SEPARAT
Plate, Thrust; 2.8 mm
1шт.
120
NSS
NOT SOLD SEPARAT
Plate, Thrust; 3.0 mm
1шт.
121
NSS
NOT SOLD SEPARAT
Plate, Thrust; 3.2 mm
1шт.
122
LW005570
COVER
Replaces LW00316
1шт.
123
108R010Z016N
BOLT
16шт.
124
165681A1
PLUG
3шт.
126
160104A1
PIN
4шт.
LZ006890
REPAIR KIT
Incl. 87, 125
1шт.
LN001880R
REMAN-REDUCTION UNIT
CX210B CRAWLER EXCAVATOR TIER 3 (NA), MOTOR ASSY GEAR ASSY, REDUCTION (1/07-)
1шт.
LN001880C
CORE-REDUCTION UNIT
Return Number
1шт.
Выбрано товаров: 49
