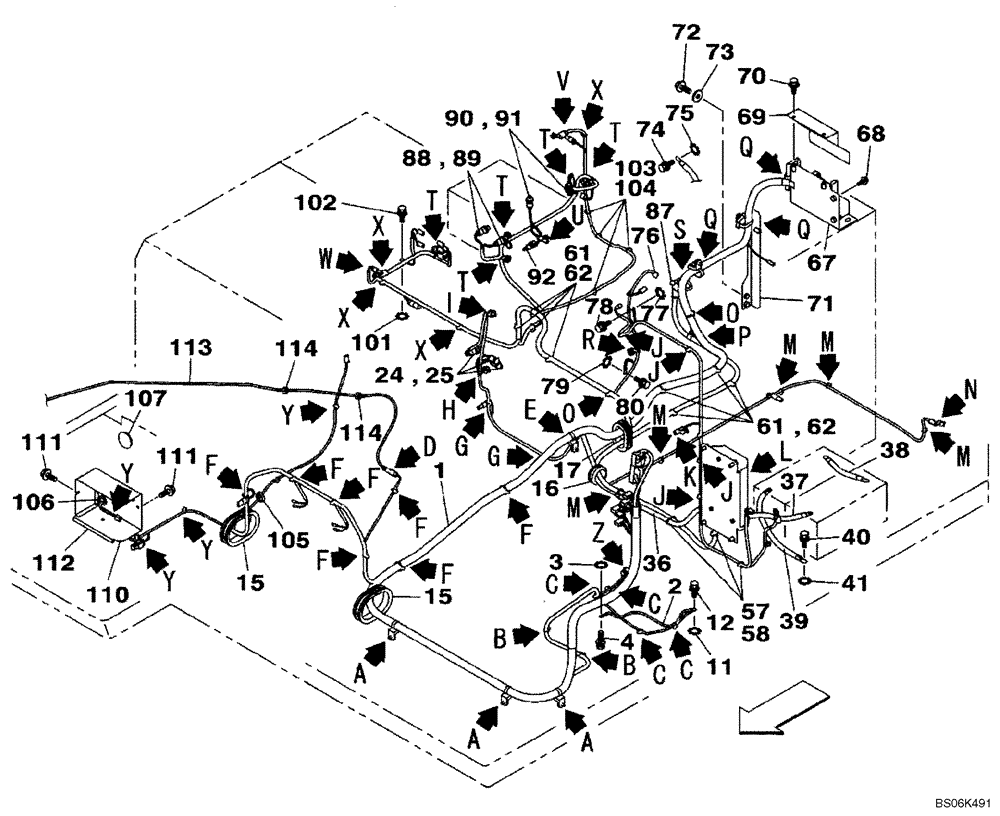

Запчасти Case CX210B (04-05) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

1

KRR12930

WIRE HARNESS

1шт.

w/o battery master switch

1шт.

1

KRR19720

WIRE HARNESS

1шт.

with battery master switch

1шт.

2

KHR11090

GROUND CABLE

1шт.

2

KHR28730

GROUND CABLE

For ROPS Cab Only

1шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

4

167518A1

BOLT

1шт.

11

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

12

167518A1

BOLT

1шт.

15

KHR15030

SEAL PROTECTION

2шт.

16

167262A1

GROMMET

1шт.

17

KRN14630

SEAL

1шт.

24

KHR10300

SENSOR,5 MPa

Pilot Pressure Incl. 25

2-3шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

KHR11050

ELECTRIC CABLE

1шт.

37

KHR13910

POS BATTERY CABLE

1шт.

38

KHR15070

NEG BATTERY CABLE

1шт.

39

KHR13920

POS BATTERY CABLE

1шт.

40

167518A1

BOLT

1шт.

41

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

57

KHR10220

MOUNTING CLIP

3шт.

58

150496A1

MOUNTING CLIP

3шт.

61

KHR10220

MOUNTING CLIP

8шт.

62

150496A1

MOUNTING CLIP

8шт.

67

KRR11900

SUPPORT

1шт.

68

166352A1

BOLT

2шт.

69

KRR11911

COVER

Replaces KRR11910

1шт.

70

166345A1

BOLT

2шт.

71

KRR11980

SUPPORT

1шт.

72

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

73

150811A1

WASHER

2шт.

74

KHJ2298

BOLT,Spcl

1шт.

75

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

76

KHR1667

PROTECTION CAP

1шт.

77

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

78

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

79

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

80

167518A1

BOLT

1шт.

87

KHR1667

PROTECTION CAP

1шт.

88

KHR10290

SENSOR

SENSOR PRESS. Incl. 89

2шт.

89

154483A1

O-RING

Replaces UCP0101

1шт.

90

KHR10300

SENSOR,5 MPa

Pilot Pressure Incl. 91

2шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

KHR2433

SENSOR

Hydraulic oil temperature

1шт.

101

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

102

167518A1

BOLT

1шт.

103

KHR10220

MOUNTING CLIP

4шт.

104

150496A1

MOUNTING CLIP

4шт.

105

150520A1

GROMMET

1шт.

106

159656A1

GROMMET

1шт.

107

KHN11510

GROMMET

1шт.

110

KHR14420

BRACKET

1шт.

111

166345A1

BOLT

2шт.

112

KHR14920

SEAL PROTECTION

1шт.

113

KHR11160

WIRE HARNESS

1шт.

114

150496A1

MOUNTING CLIP

1шт.
