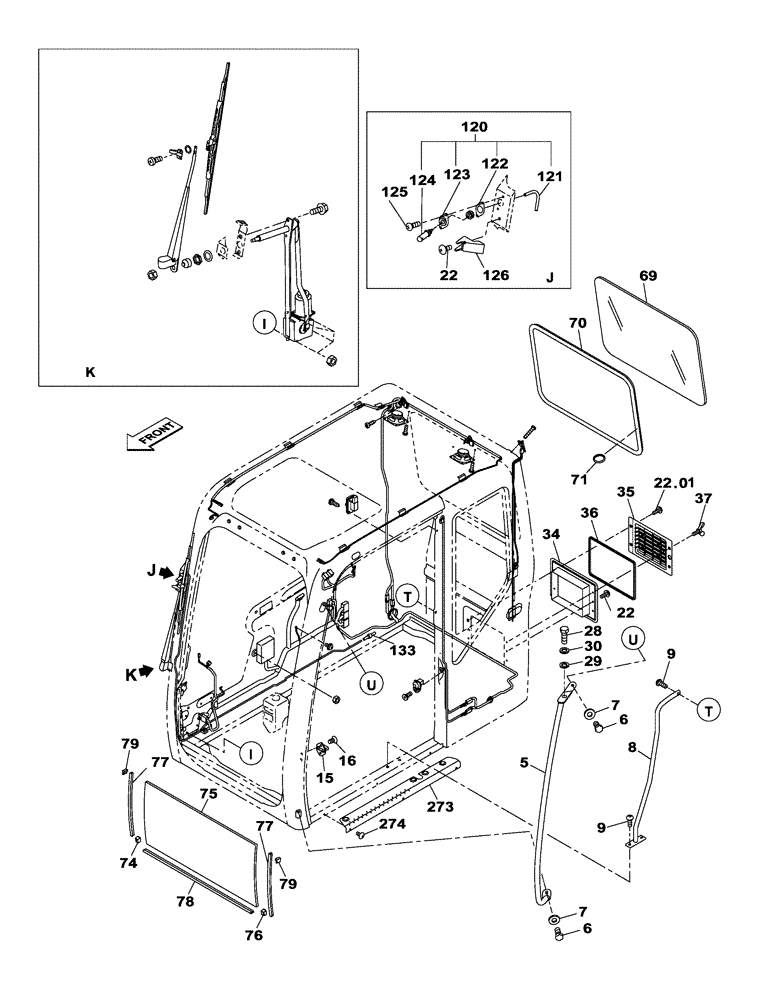

Запчасти Case CX210B (09-28) - CAB - REAR WINDOW - HANDLE - WINDSHIELD WASHER (13) - CHASSIS/ATTACHMENTS

0

KHN16502

CAB

(With Glass Roof Hatch) Incl Parts on Fig 04-10, 09-27, 09-29, 09-30

1шт.

5

KHN14110

HANDRAIL

1шт.

6

KHN14120

BOLT,Spcl

M10 x 20

2шт.

7

KHN14130

WASHER

2шт.

8

KHN14150

HANDRAIL

1шт.

9

KHN14160

BOLT,Spcl

M10 x 25

3шт.

15

KHN14200

STOP

1шт.

16

KHN2702

SCREW,Spcl

M8 x 20

2шт.

22

KHN2768

SCREW,Spcl

M6 x 16

1шт.

22.01

KHN18780

SCREW,M6 x 16mm

M6 x 16

3шт.

28

KHN14270

BOLT,Spcl, Hex, M16 x 50mm

M16 x 50

1шт.

29

KHN14280

WASHER

1шт.

30

KHN14290

WASHER

1шт.

34

KHN2769

COVER

1шт.

35

KHN14330

COVER

1шт.

36

KHN2771

SEAL

1шт.

37

KHN14340

BOLT,Spcl

2шт.

69

KHN14930

CAB GLASS

1шт.

70

KHN14950

RUBBER WEATHERSTRIP

1шт.

71

KHN14960

RING

1шт.

74

KHN14990

SPACER

7шт.

75

KHN15000

CAB GLASS

1шт.

76

KHN15010

STOP LOCK

2шт.

77

KHN15020

SEAL, GLASS

2шт.

78

KHN15030

SEAL, GLASS

1шт.

79

KHN15040

SEAL

2шт.

120

KHN16040

NOZZLE

1шт.

Include(s) 121 - 124

1шт.

121

KHN16050

TUBE

1шт.

122

KHN14180

GASKET

1шт.

123

KHN16060

ADAPTER

1шт.

124

KHN2746

NOZZLE

1шт.

125

KHN16070

SCREW

M4 x 12

2шт.

126

KHN16080

SUPPORT

1шт.

133

KHN16100

RUBBER JOINT

1шт.

273

KHN13630

GUARD

1шт.

274

KHN13640

SCREW

M6 x 12

3шт.
