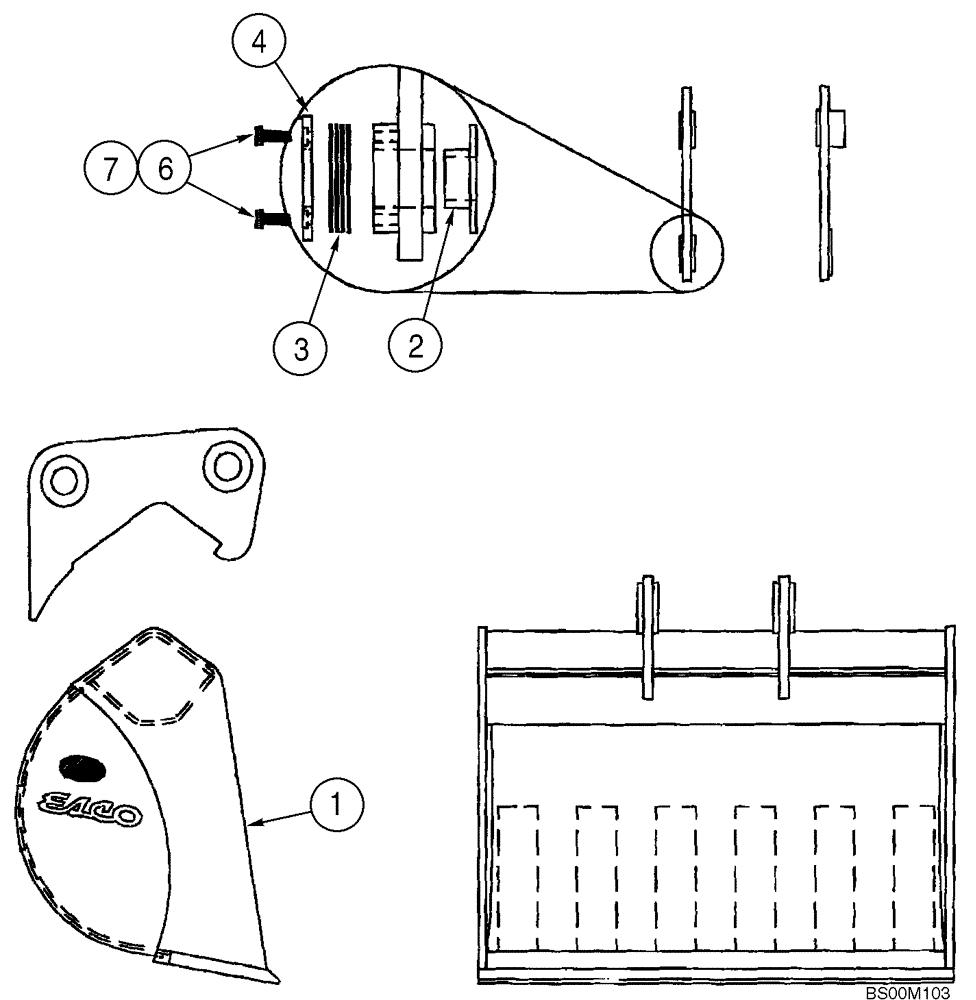

Запчасти Case CX210B (09-44) - BUCKETS, ESCO - DITCH CLEANING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

371479A1

BUCKET

0.82 cu m (1.08 cu yd)

1шт.

1

371480A1

BUCKET

0.91 cu m (1.20 cu yd)

1шт.

2

372027A1

ADAPTER

1шт.

3

378630A1

SHIM

6шт.

4

378631A1

PLATE

1шт.

5

378632A1

PIN

Not Illustrated

2шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

7

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

378642A1

KIT

Adjustment; Incl. 2 - 7

1шт.
