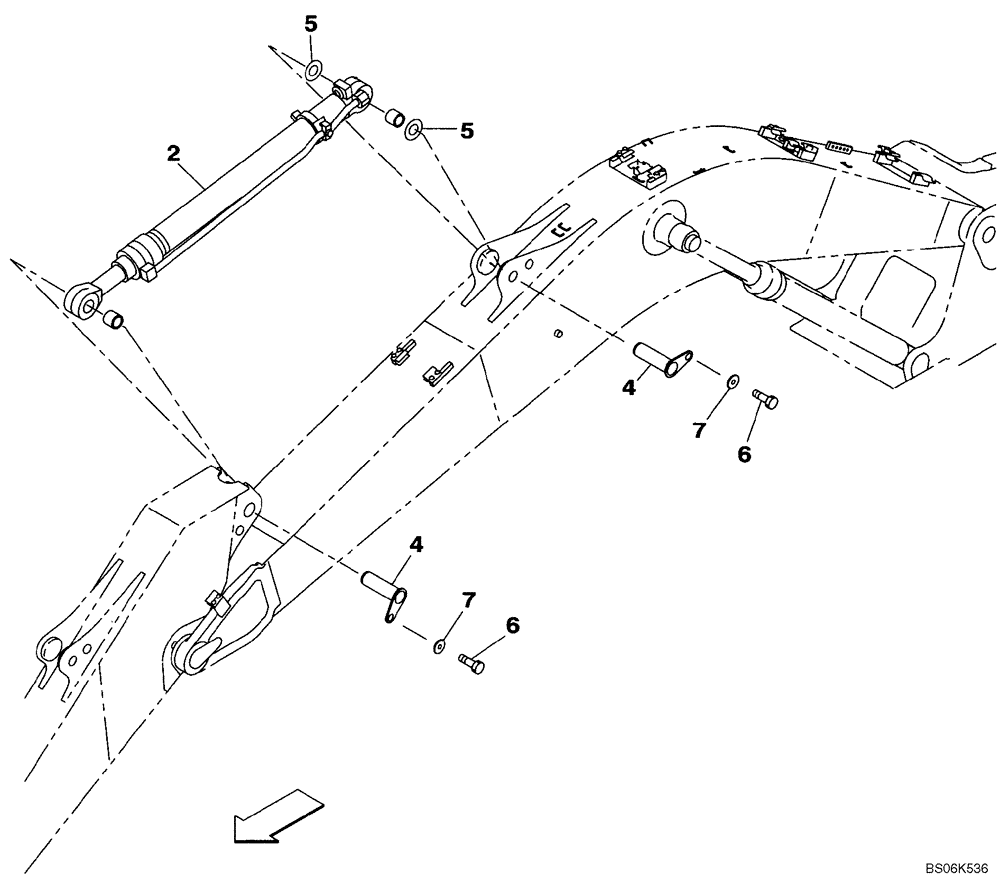

Запчасти Case CX210B (09-39) - ARM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

2

KRV19600

HYDRAULIC CYLINDER

Arm; See Figure 08- 85

1шт.

2

KRV33000R

REMAN-HYD CYLINDER

CX210B CRAWLER EXCAVATOR TIER 3 (NA), Arm (1/07-), Reman for New PN KRV19600

1шт.

2

KRV33000C

CORE-HYD CYLINDER

Return Number

1шт.

4

KRV10980

PIN

2шт.

5

159741A1

SHIM

If Used

2шт.

5

158691A1

WASHER

If Used

2шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

7

157141A1

WASHER

2шт.
