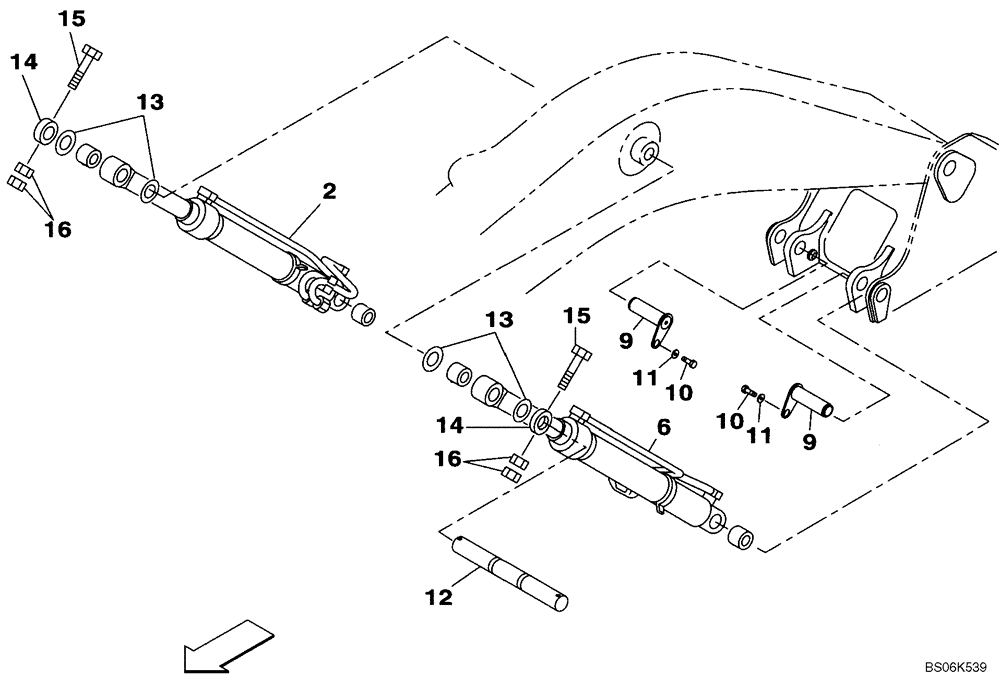

Запчасти Case CX210B (09-37) - BOOM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

2

KRV19520

HYDRAULIC CYLINDER

Right Hand; See Figure 08- 83

1шт.

2

KRV19520R

REMAN-HYD CYLINDER

CX210B CRAWLER EXCAVATOR TIER 3 (NA), Right Hand (1/07-)

1шт.

2

KRV19520C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV32981R

REMAN-HYD CYLINDER

CX210B CRAWLER EXCAVATOR TIER 3 (NA), Right Hand (1/07-), Reman for New PN KRV19520

1шт.

2

KRV32981C

CORE-HYD CYLINDER

Return Number

1шт.

6

KRV19540

HYDRAULIC CYLINDER

Left Hand; See Figure 08- 84

1шт.

6

KRV19540R

REMAN-HYD CYLINDER

CX210B CRAWLER EXCAVATOR TIER 3 (NA), Left Hand (1/07-)

1шт.

6

KRV19540C

CORE-HYD CYLINDER

Return Number

1шт.

6

KRV32991R

REMAN-HYD CYLINDER

CX210B CRAWLER EXCAVATOR TIER 3 (NA), Left Hand (1/07-), Reman for New PN KRV19540

1шт.

6

KRV32991C

CORE-HYD CYLINDER

Return Number

1шт.

9

KRV10960

PIN

2шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

11

157141A1

WASHER

2шт.

12

169087A1

PIN

1шт.

13

160453A1

SHIM

4шт.

14

160451A1

LOCKING RING

2шт.

15

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

2шт.

16

829-11420

NUT,M20 x 1.5, Cl 10

4шт.
