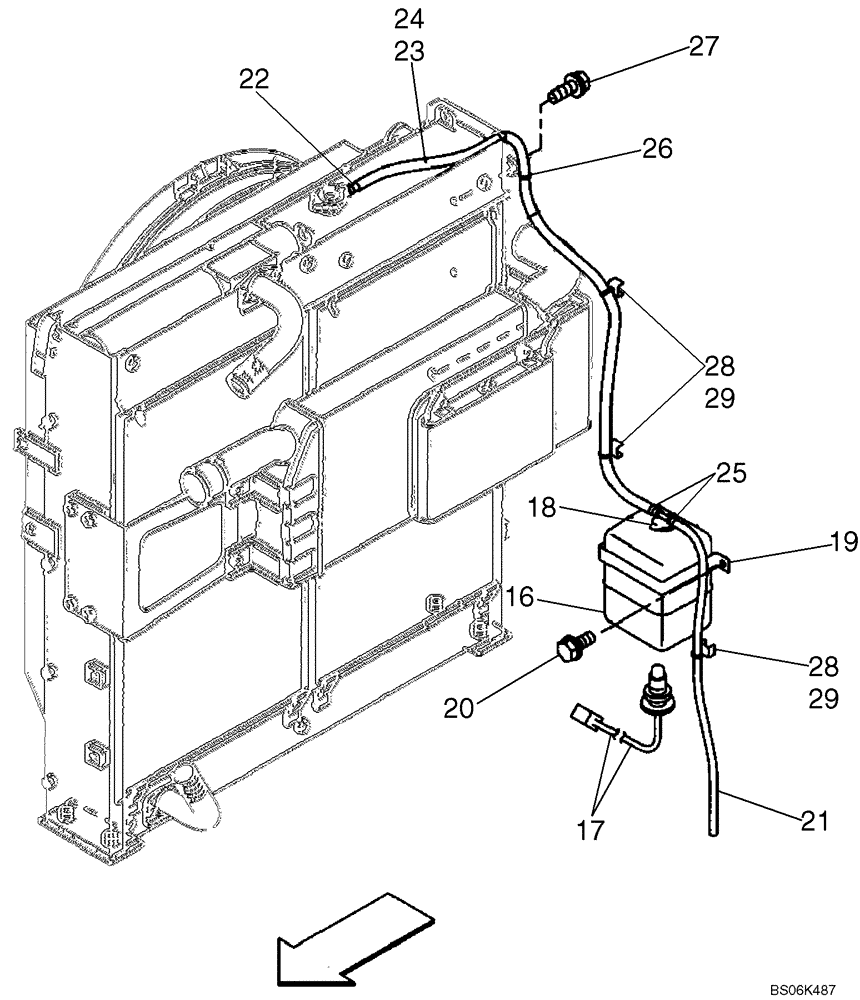

Запчасти Case CX210B (02-06) - COOLANT RECOVERY SYSTEM (02) - ENGINE

KHH10840

RESERVOIR, COOLANT E

Incl. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Tank

1шт.

17

161740A1

SWITCH

1шт.

18

KHH10860

PLASTIC PLUG

1шт.

19

KRH1270

HOLDER

1шт.

20

166052A1

BOLT

2шт.

21

KHH0398

HOSE,7mm ID x 650mm L

650 mm

1шт.

22

165951A1

CLAMP

1шт.

23

150487A1

HOSE

1шт.

24

150401A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1000 mm Length

1шт.

25

165951A1

CLAMP

2шт.

26

KHR2584

CLAMP

1шт.

27

KHJ1215

BOLT,Spcl

1шт.

28

KHR10220

MOUNTING CLIP

3шт.

29

150496A1

MOUNTING CLIP

3шт.
