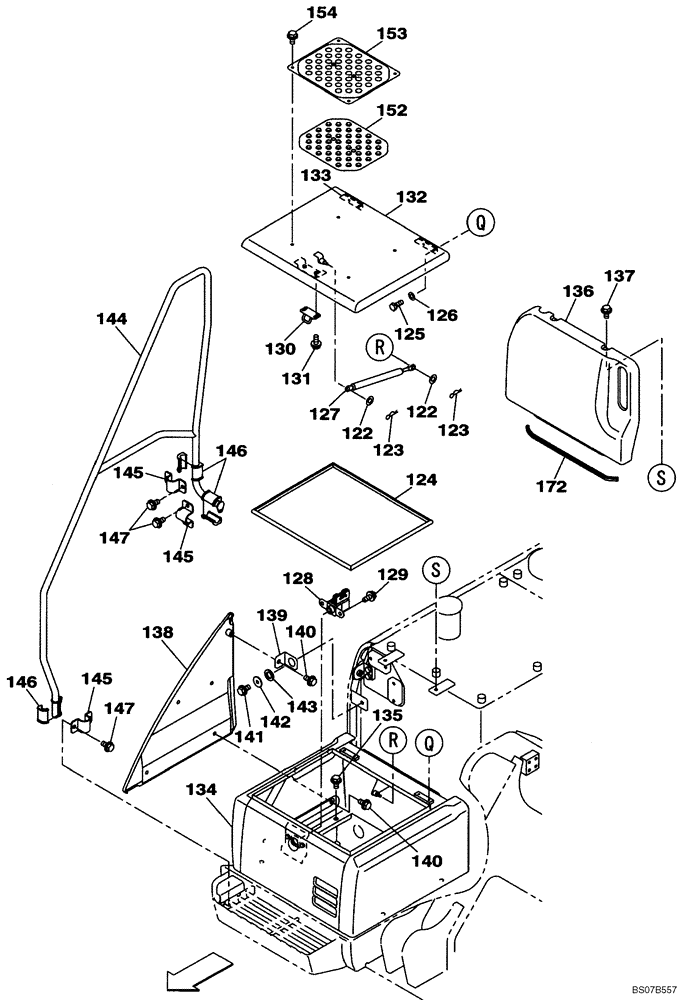

Запчасти Case CX210B (09-08) - STORAGE BOX - INSULATION (09) - CHASSIS/ATTACHMENTS

KRN12340DM

COVER

Incl. 122 - 134

1шт.

122

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

123

153077A1

COTTER PIN

2шт.

124

KRN16030

SEALING STRIP

Replaces KTN1391

1шт.

125

KAN2771

BOLT,Spcl

4шт.

126

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

4шт.

127

KHN12750

GAS STRUT

1шт.

128

KHN12730

LOCK

1шт.

129

166351A1

BOLT,Sems, M10 x 20mm

2шт.

130

KHN12740

SUPPORT

1шт.

131

166350A1

BOLT

2шт.

132

KRN12360G1

COVER

Incl. 133

1шт.

133

KHN17220

HINGE

2шт.

134

KRN12350G1

COVER

1шт.

135

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

136

KRN12370G1

COVER

1шт.

137

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

138

KHN12710Y2

COVER

1шт.

139

KHN12720

SUPPORT

1шт.

140

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

141

166352A1

BOLT

1шт.

142

162409A1

WASHER

1шт.

143

KHN2061

WASHER

1шт.

144

KHN12681B1

STAY

Replaces KHN12680B1

1шт.

145

KHN12690

COLLAR

3шт.

146

KHN12700

COLLAR

6шт.

147

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

152

KHN10940

RUBBER PAD

1шт.

153

KHN13510B1

COVER

1шт.

154

KHN13540

BOLT,Spcl

4шт.

172

KRN12790

SEAL PROTECTION

1шт.
