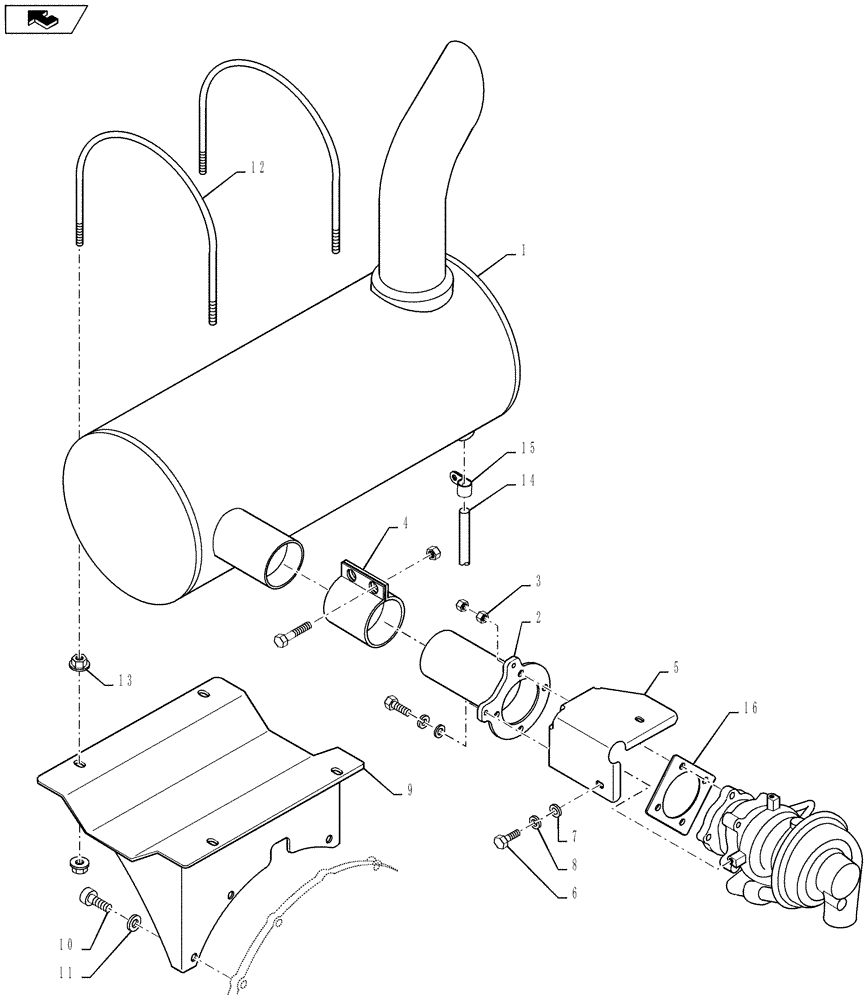

Запчасти Case CX210B (02-04) - EXHAUST SYSTEM - MUFFLER (02) - ENGINE

1

KRH10880

MUFFLER

1шт.

2

KRH10160

EXHAUST SYSTEM PIPE

1шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

4

KSH0951

COLLAR ASSY.

1шт.

5

KRH10930

COVER

1шт.

6

102R006A016N

BOLT

4шт.

7

182-006AN

WASHER

4шт.

8

183-106AN

SPRING-DISC

4шт.

9

KRH10150

SUPPORT

1шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

11

150409A1

WASHER

10,5 x 21 x 3,2 mm

3шт.

12

KHH11400

RETAINER COLLAR

2шт.

13

KHH11440

FLANGE NUT

8шт.

14

150657A1

TUBE

850 mm (33-7/16 in)

1шт.

15

165952A1

MOUNTING CLIP

1шт.

16

289213A1

GASKET

Not Shown, Mounts Between Ref. 2 and Turbo

1шт.
