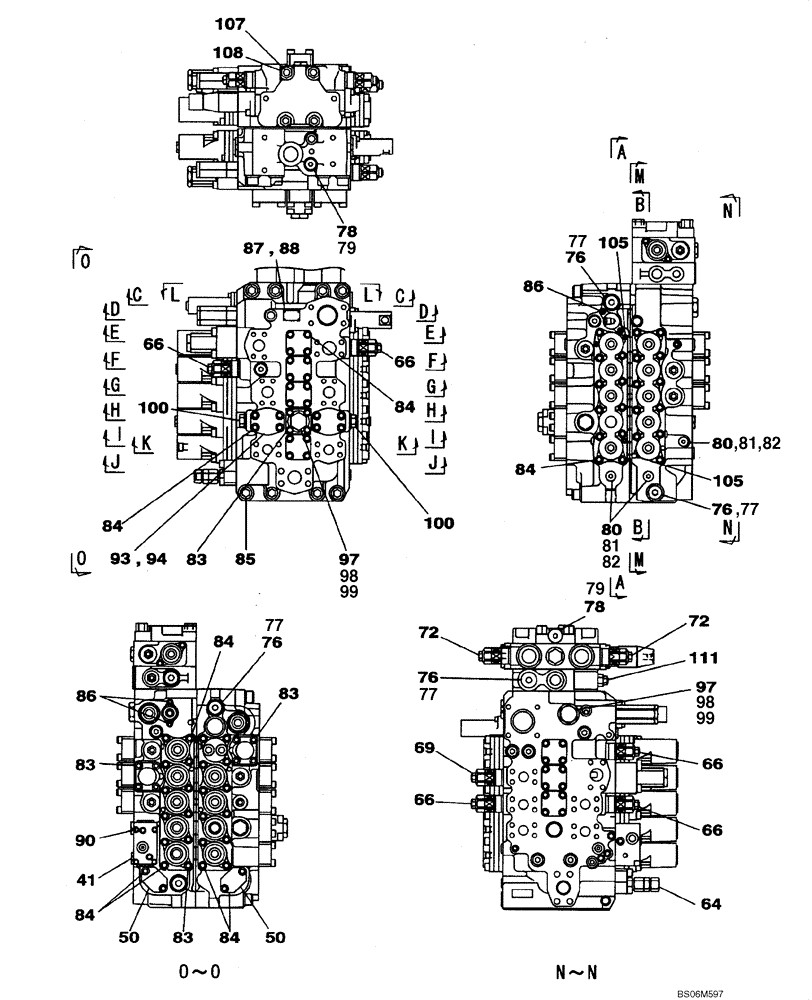

Запчасти Case CX210B (08-64) - KRJ16011 VALVE ASSY - CONTROL (08) - HYDRAULICS

KRJ16011

CONTROL VALVE

Includes All Parts On Figures 08-64 - 08-69, Replaces KRJ16010

1шт.

41

LR015280

BODY

1шт.

50

LH00250

CAP

2шт.

64

LJ014720

VALVE PRESSURE RELIE

See Figure 08-69

1шт.

66

LJ014730

VALVE PRESSURE RELIE

See Figure 08-69

5шт.

69

LJ014740

VALVE PRESSURE RELIE

See Figure 08-69

1шт.

72

LJ014750

CHECK VALVE

See Figure 08-69

2шт.

76

163370A1

PLUG

Incl. 77

4шт.

77

154487A1

O-RING

1шт.

78

163369A1

PLUG

Incl. 79

2шт.

79

154475A1

O-RING

1шт.

80

163972A1

PLUG

Incl. 81, 82

3шт.

81

LK00328

PLUG

1шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

108R010Z055B

BOLT

24шт.

84

108R010Z040B

BOLT

M10 x 40

74шт.

85

108R016Z130B

BOLT

M16 x 130

8шт.

86

LUC0118

BOLT,Hex Skt Hd

4шт.

87

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

88

NSS

NOT SOLD SEPARAT

Rivet

4шт.

90

LA011120

BOLT,Hex Skt Hd

4шт.

93

LR00579

PLUG

2шт.

94

168198A1

O-RING

2шт.

97

LK00302

PLUG

Incl. 98, 99

2шт.

98

165836A1

PLUG

1шт.

99

154503A1

O-RING

1шт.

100

165839A1

PLUG

See Figure 08-69

2шт.

105

LA011130

BOLT,Hex Skt Hd

2шт.

107

LB011900

TIE-ROD

4шт.

108

LUC0094

SPECIAL NUT

4шт.

111

LJ014780

CHECK VALVE

See Figure 08-69

1шт.
