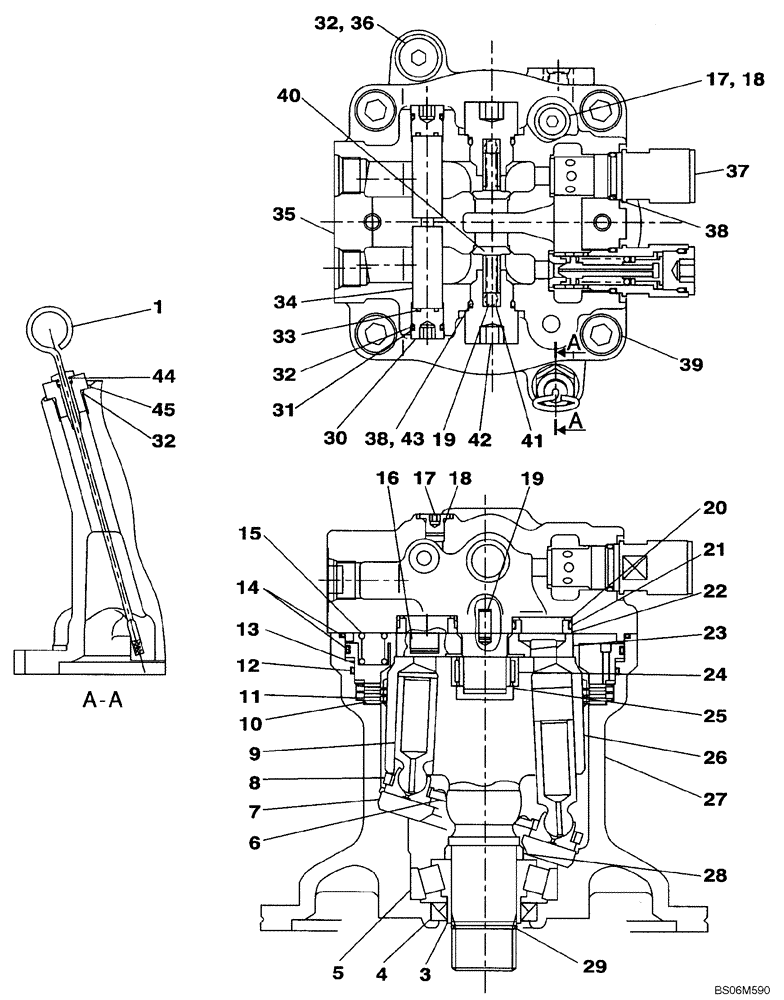

Запчасти Case CX210B (08-53) - MOTOR ASSY - SWING (08) - HYDRAULICS

.

KRC10010

MOTO-REDUCTION GEAR

Includes All Parts On Figures 08-53, 08-54, Serial Range: -N9EAJ1279

1шт.

.

KRC10260R

REMAN-HYD MOTOR

CX210B CRAWLER EXCAVATOR TIER 3 (NA), MOTOR ASSY, SWING, Serial Range: -N9EAJ1279 (1/07-), Reman for New PN KRC10010

1шт.

.

KRC10260C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

.

KRC10010

MOTO-REDUCTION GEAR

, Serial Range: -N9SAH2388

1шт.

.

KRC10260R

REMAN-HYD MOTOR

CX210B CRAWLER EXCAVATOR TIER 3 (NA), MOTOR ASSY, SWING (1/07-), Reman for New PN KRC10010

1шт.

.

KRC10260C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

.

KRC10010

MOTO-REDUCTION GEAR

, Serial Range: -N9SAJ2428

1шт.

.

KRC10260R

REMAN-HYD MOTOR

CX210B CRAWLER EXCAVATOR TIER 3 (NA), MOTOR ASSY, SWING (1/07-), Reman for New PN KRC10010

1шт.

.

KRC10260C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

.

KRC10010

MOTO-REDUCTION GEAR

, Serial Range: -N9SAJ2396

1шт.

.

KRC10260R

REMAN-HYD MOTOR

CX210B CRAWLER EXCAVATOR TIER 3 (NA), MOTOR ASSY, SWING (1/07-), Reman for New PN KRC10010

1шт.

.

KRC10260C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

KRC10030

DIPSTICK

1шт.

0

KRC10190

HYDRAULIC MOTOR

Incl. 3 - 45

1шт.

3

155620A1

SPACER

1шт.

4

155106A1

OIL SEAL

1шт.

5

156133A1

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

1шт.

6

156080A1

SPRING

1шт.

7

155616A1

PLATE

1шт.

8

155617A1

PLATE

1шт.

9

NSS

NOT SOLD SEPARAT

Piston

4шт.

10

155619A1

PLATE

3шт.

11

155618A1

PLATE

3шт.

12

155198A1

O-RING

1шт.

13

LPM0116

PISTON

1шт.

14

155199A1

O-RING

2шт.

15

156082A1

SPRING

20шт.

16

LJ00723

PISTON

2шт.

17

160306A1

CAP

3шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

19

160101A1

COTTER PIN

2шт.

20

LG00337

SPRING

4шт.

21

LE00776

RING

4шт.

22

LB00544

BUSHING

4шт.

23

LR014920

PLATE

1шт.

24

156134A1

NEEDLE BEARING,Needle, 30mm ID x 45mm OD x 20mm W

1шт.

25

155614A1

RING, LOCKING

RING, LOCK

1шт.

26

NSS

NOT SOLD SEPARAT

Cylinder Block

4шт.

27

NSS

NOT SOLD SEPARAT

Housing

1шт.

28

165745A1

COLLAR

1шт.

29

155613A1

RING, LOCKING

RING, LOCK

1шт.

30

LZC0156

CAP

2шт.

31

166176A1

BACK-UP RING

2шт.

32

154487A1

O-RING

4шт.

33

154471A1

O-RING

2шт.

34

LK005600

PLUG

2шт.

36

160903A1

CAP

1шт.

37

KRC0184

VALVE, PRESSURE RELI

EF

2шт.

38

154515A1

O-RING

4шт.

37-1

155990A1

SHIM KIT

Not Shown

1шт.

39

863-16060

HEX SOC SCREW,M16 x 60mm, Cl 12.9

4шт.

40

155944A1

PLUNGER

2шт.

41

156079A1

SPRING

2шт.

42

156305A1

CAP

2шт.

43

153991A1

BACK-UP RING

2шт.

44

155201A1

O-RING

1шт.

45

LR00895

CAP

1шт.
