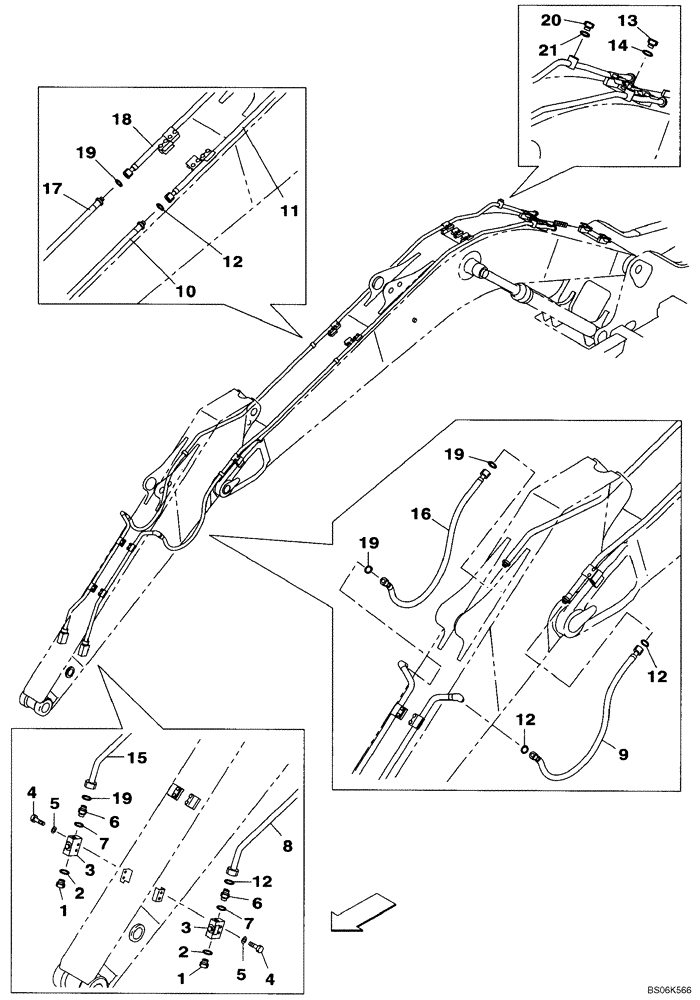

Запчасти Case CX210B (08-42) - OPTION LINE (BAR BASE) - 2.9 M ARM (WITH 26MM ID TUBE) (08) - HYDRAULICS

1

162659A1

PLUG

Incl. 2

2шт.

2

154523A1

O-RING

1шт.

3

KHV10430

SHUT-OFF VALVE

Replaces KHV10690

2шт.

4

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

Replaces 827-12080

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1349

ADAPTER

Incl. 7

2шт.

7

154523A1

O-RING

1шт.

8

KRV23240

HYD TUBE,26 mm ID x 34 mm OD

Replaces KRV19130

1шт.

9

KRV19740

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

1шт.

10

KRV19110Y2

HYD TUBE

Replaces KRV19110 (26mm ID x 34mm OD)

1шт.

11

KRV19090Y2

HYD TUBE

Replaces KRV19090 (26mm ID x 34mm OD)

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

13

152924A1

PLUG

Incl. 14

1шт.

14

154503A1

O-RING

1шт.

15

KRV23250

HYD TUBE,26 mm ID x 34 mm OD

Replaces KRV19140

1шт.

16

KRV19740

HYDRAULIC HOSE,25.40 mm ID x 1500.00 mm

1шт.

17

KRV19120Y2

HYD TUBE

Replaces KRV19120 (26mm ID x 34mm OD)

1шт.

18

KRV19100Y2

HYD TUBE

Replaces KRV19100 (26mm ID x 34mm OD)

1шт.

19

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

20

152924A1

PLUG

1шт.

21

154503A1

O-RING

1шт.
