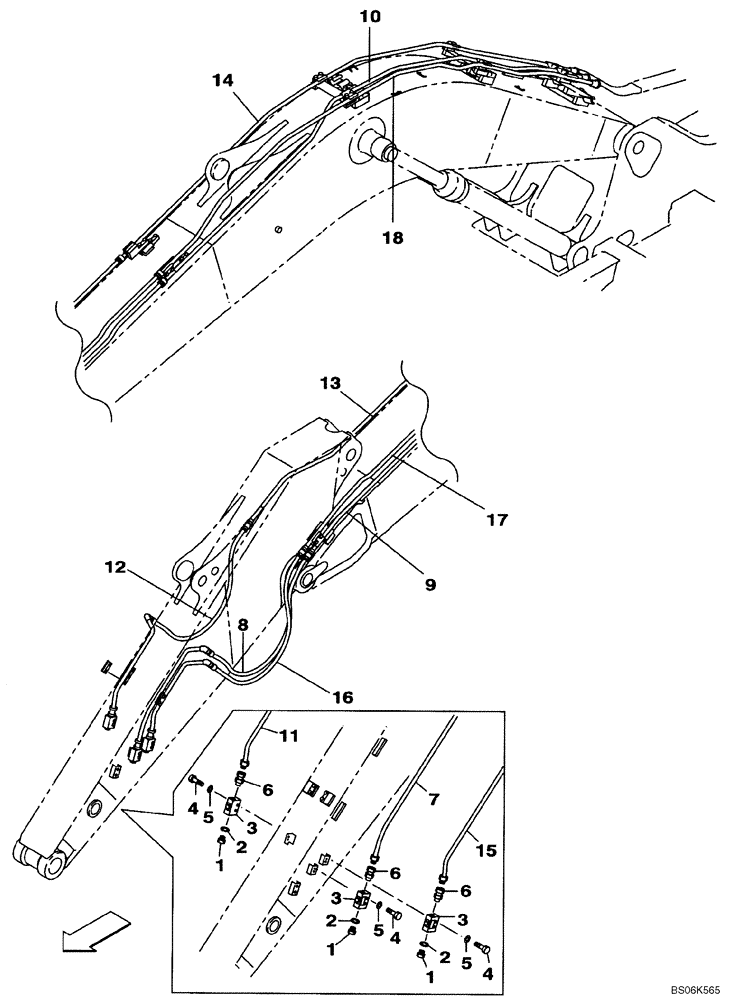

Запчасти Case CX210B (08-41) - SECOND OPTION LINE, 2.4 M ARM (WITH 16MM TUBE) (08) - HYDRAULICS

1

159085A1

PLUG

Incl. 2

3шт.

2

154487A1

O-RING

1шт.

3

KHV10670

VALVE SECTION

3шт.

4

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

6шт.

5

150409A1

WASHER

6шт.

6

KHJ1939

FITTING

3шт.

7

KRV20830

HYD TUBE

(16mm ID x 21.7mm OD)

1шт.

8

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

9

KRV19180Y2

HYD TUBE

Replaces KRV19180 (16mm ID x 21.7mm OD)

1шт.

10

KRV19150Y2

HYD TUBE

Replaces KRV19150 (16mm ID x 21.7mm OD)

1шт.

11

KRV20820

HYD TUBE

(16mm ID x 21.7mm OD)

1шт.

12

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

13

KRV19190Y2

HYD TUBE

Replaces KRV19190 (16mm ID x 21.7mm OD)

1шт.

14

KRV19160Y2

HYD TUBE

Replaces KRV19160 (16mm ID x 21.7mm OD)

1шт.

15

KRV20840

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

16

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

Replaces KRV19750

1шт.

17

KRV19180Y2

HYD TUBE

Replaces KRV19180 (16mm ID x 21.7mm OD)

1шт.

18

KRV19170Y2

HYD TUBE

Replaces KRV19170 (16mm ID x 21.7mm OD)

1шт.
