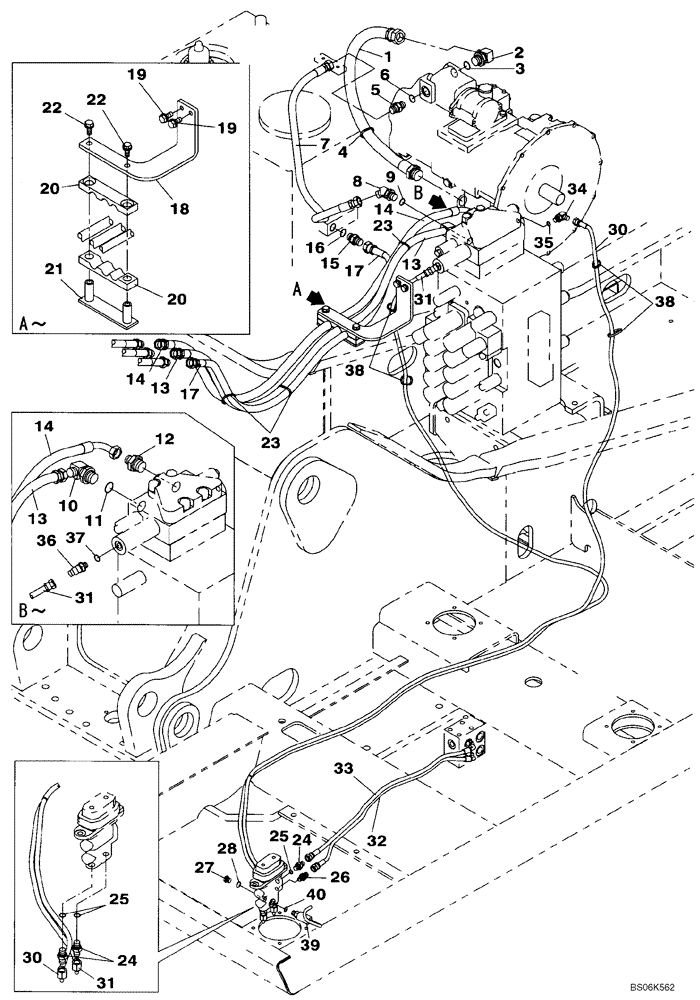

Запчасти Case CX210B (08-38) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

1

KTJ2249

HYDRAULIC HOSE,25.40 mm ID x 800.00 mm

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 3

1шт.

3

154523A1

O-RING

1шт.

4

150496A1

MOUNTING CLIP

1шт.

5

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 6

1шт.

6

154487A1

O-RING

1шт.

7

HLV0082

HYDRAULIC HOSE,12.70 mm ID x 1250.00 mm

1шт.

8

157585A1

ELBOW

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

157936A1

ELBOW

Incl. 11

1шт.

11

154503A1

O-RING

1шт.

12

168988A1

ADAPTER

1шт.

13

KRJ16470

HYDRAULIC HOSE,12.70 mm ID x 1410.00 mm

1шт.

14

KRJ16480

HYDRAULIC HOSE,12.70 mm ID x 1540.00 mm

1шт.

15

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 16

1шт.

16

154487A1

O-RING

1шт.

17

KRJ16490

HYDRAULIC HOSE,12.70 mm ID x 1560.00 mm

1шт.

18

KRJ16070

SUPPORT

1шт.

19

166052A1

BOLT

2шт.

20

KRJ11580

HOSE CLIP

2шт.

21

KRJ11590

SUPPORT

1шт.

22

166052A1

BOLT

2шт.

23

150496A1

MOUNTING CLIP

3шт.

24

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 25

3шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

161841A1

HYD CONNECTOR

1шт.

27

159002A1

PLUG

Incl. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

KHJ12230

HYDRAULIC HOSE

3450 mm (135-13/16 in)

1шт.

31

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

32

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

33

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

150933A1

ELBOW

Incl. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

150496A1

MOUNTING CLIP

4шт.

39

KHR10820

PRESSURE SWITCH

Incl. 40

1шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
