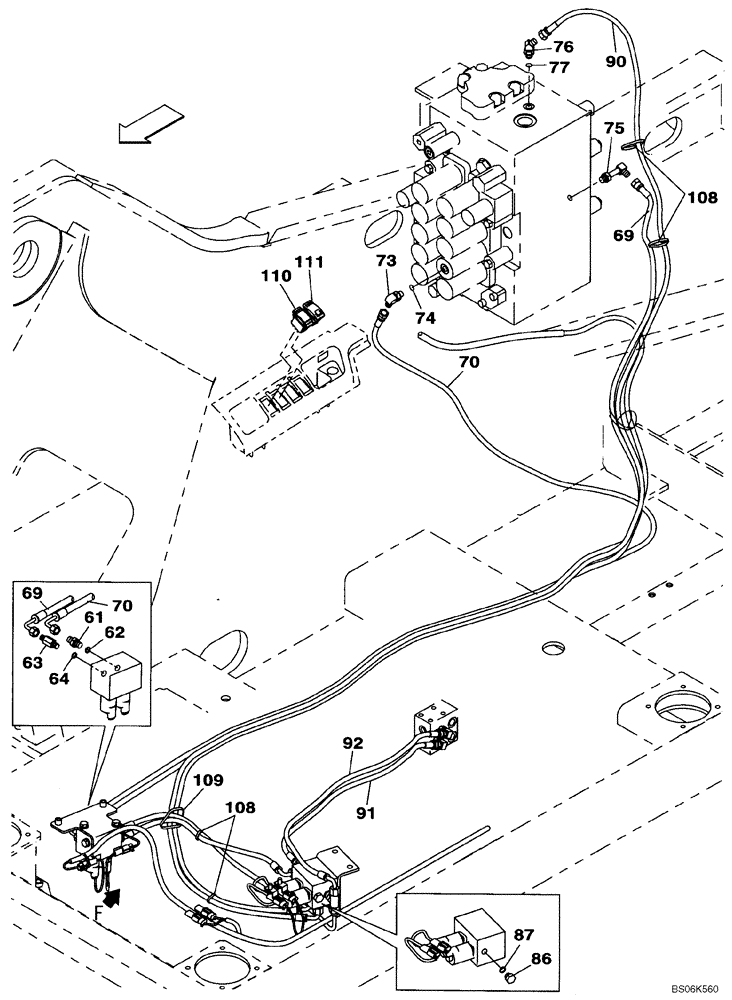

Запчасти Case CX210B (08-36) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

61

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 62

1шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

162554A1

FITTING

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

69

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm (112-3/16 in)

1шт.

70

KHJ2165

HOSE

2900 mm (114-3/16 in)

1шт.

73

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 74

1шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

KHJ1178

ELBOW

1шт.

76

150933A1

ELBOW

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

159002A1

PLUG

Incl. 87

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

KHJ15170

HYDRAULIC HOSE

3800 mm (149-5/8 in)

1шт.

91

KHJ14650

HYDRAULIC HOSE

3500 mm (137-7/8 in)

1шт.

92

KHJ2048

HOSE,6.3mm ID x 750mm L

800 mm (31-1/2 in)

1шт.

108

150496A1

MOUNTING CLIP

1шт.

109

150498A1

MOUNTING CLIP

1шт.

110

KHR14450

SWITCH,Multipurpose

1шт.

111

KHR14460

SWITCH,Low Flow

1шт.
