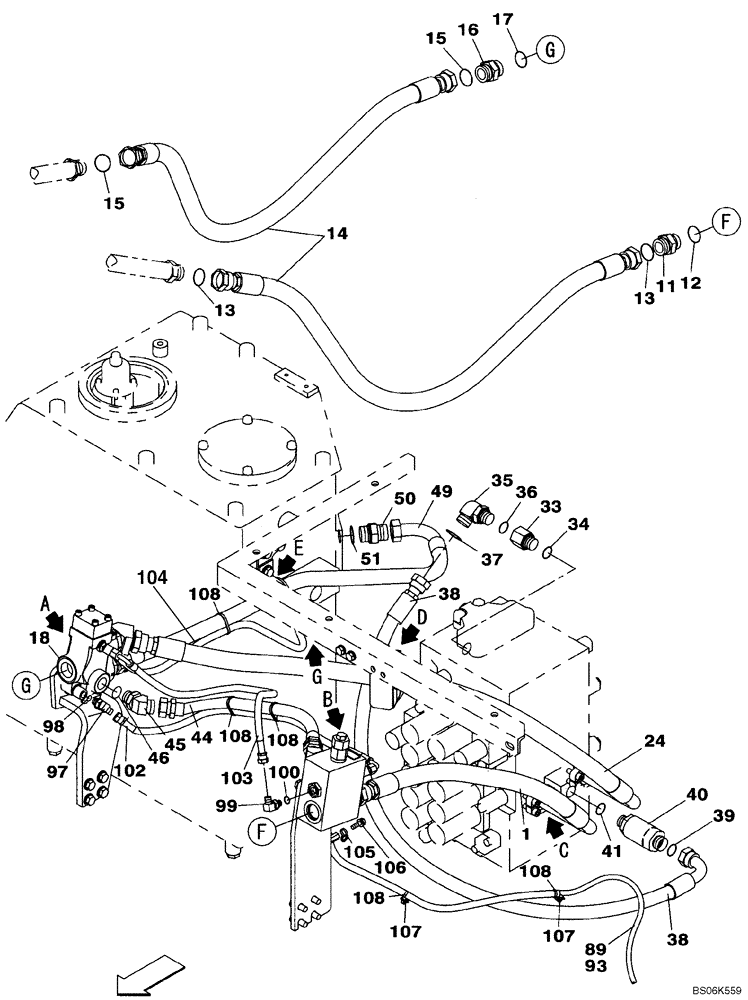

Запчасти Case CX210B (08-35) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

1

KRJ11500

HYDRAULIC HOSE,25.40 mm ID x 860.00 mm

1шт.

11

KHJ1349

ADAPTER

Incl. 12

1шт.

12

154523A1

O-RING

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KRJ11510

HYDRAULIC HOSE,25.40 mm ID x 1360.00 mm

2шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

16

KHJ1349

ADAPTER

Incl. 17

1шт.

17

154523A1

O-RING

1шт.

18

KHJ10420

VALVE SECTION

See Figure 08-77

1шт.

24

KRJ11520

HYDRAULIC HOSE,25.40 mm ID x 1300.00 mm

1шт.

33

159198A1

ADAPTER

Incl. 34

1шт.

34

154503A1

O-RING

1шт.

35

KHJ1804

ELBOW

Incl. 36

1шт.

36

154503A1

O-RING

1шт.

37

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

38

KRJ16540

HYDRAULIC HOSE,19.00 mm ID x 1130.00 mm

1шт.

39

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

40

KHJ10480

VALVE SECTION

Incl. 41

1шт.

41

154503A1

O-RING

1шт.

44

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

45

157586A1

ELBOW

Incl. 46

1шт.

46

154503A1

O-RING

1шт.

49

KRJ16340

HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm

1шт.

50

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 51

1шт.

51

154523A1

O-RING

1шт.

89

KHJ15160

HYDRAULIC HOSE

3000 mm (149-5/8 in)

1шт.

93

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1шт.

97

150933A1

ELBOW

Incl. 98

1шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

102

KHJ16850

HOSE

800 mm (31-1/2 in), Replaces KHJ2048

1шт.

103

KHJ16870

HOSE

1000 mm (39-3/3 in), Replaces KHJ2090

1шт.

104

KHJ16890

HOSE

900 mm (35-7/16 in), Replaces KHJ2049

1шт.

105

KHR2584

CLAMP

1шт.

106

KHJ1215

BOLT,Spcl

1шт.

107

KHR10220

MOUNTING CLIP

2шт.

108

150496A1

MOUNTING CLIP

1шт.
