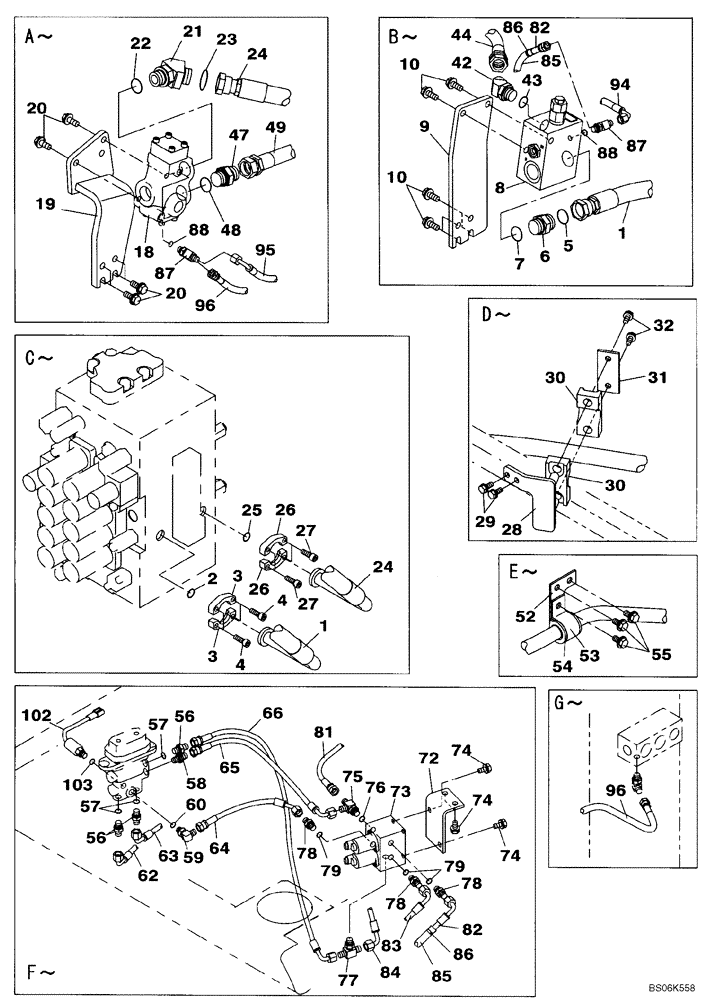

Запчасти Case CX210B (08-34) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, PEDAL ACTIVATED (08) - HYDRAULICS

1

KRJ11500

HYDRAULIC HOSE,25.40 mm ID x 860.00 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ1349

ADAPTER

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ10410

VALVE SECTION

See Figure 08-78

1шт.

9

KRJ11470

SUPPORT

1шт.

10

166352A1

BOLT

6шт.

18

KHJ10420

VALVE SECTION

See Figure 08-77

1шт.

19

KRJ16050

SUPPORT

1шт.

20

166352A1

BOLT

6шт.

21

KHJ11370

ELBOW

Incl. 22

1шт.

22

154523A1

O-RING

1шт.

23

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

24

KRJ11520

HYDRAULIC HOSE,25.40 mm ID x 1300.00 mm

1шт.

25

155211A1

O-RING

1шт.

26

153459A1

FLANGE

Split

2шт.

27

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

28

KRJ16060

SUPPORT

1шт.

29

166052A1

BOLT

2шт.

30

KRJ11450

HOSE CLIP

2шт.

31

KRJ10800

PLATE

1шт.

32

166052A1

BOLT

2шт.

42

157586A1

ELBOW

Incl. 43

1шт.

43

154503A1

O-RING

1шт.

44

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

47

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 48

1шт.

48

154523A1

O-RING

1шт.

49

KRJ16340

HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm

1шт.

52

KRJ16280

SUPPORT

1шт.

53

KBJ11860

SUPPORT

1шт.

54

KHJ2680

COLLAR CLAMP

1шт.

55

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

56

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 57

3шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

161841A1

HYD CONNECTOR

1шт.

59

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 60

1шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

KHJ2165

HOSE

2900 (114-316 in)

1шт.

63

KHJ2165

HOSE

2900 (114-316 in)

1шт.

64

KHJ2244

HOSE

600 (23-5/8 in)

1шт.

65

KHJ2085

HOSE

600 (23-5/8 in)

1шт.

66

KHJ2194

HOSE,6.3mm ID x 650mm L

650 (25-5/8 in)

1шт.

72

KHJ11510

SUPPORT

1шт.

73

KHJ14780

VALVE SECTION

See Figure 08-74

1шт.

74

166351A1

BOLT,Sems, M10 x 20mm

4шт.

75

159497A1

TEE

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

167321A1

TEE

1шт.

78

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 79

3шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

81

KHJ2047

HOSE

650 (25-5/8 in)

1шт.

82

KHJ11480

HYDRAULIC HOSE,6.35 mm ID x 3950.00 mm

1шт.

83

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

84

KHJ2086

HOSE,6.3mm ID x 700mm L

700 mm (27-1/4 in)

1шт.

85

151925A1

PLASTIC-RUBBER TUBE,10.5 mm ID, 14.1 mm OD, 1000 mm Length

1шт.

86

150067A1

MOUNTING CLIP

2шт.

87

159497A1

TEE

Incl. 88

2шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

KHJ16850

HOSE

800 mm (31-1/2 in), Replaces KHJ2048

1шт.

95

KHJ16870

HOSE

1000 mm (39-3/3 in), Replaces KHJ2090

1шт.

96

KHJ16890

HOSE

900 mm (35-7/16 in), Replaces KHJ2049

1шт.

102

KHR10820

PRESSURE SWITCH

Incl. 103

1шт.

103

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
