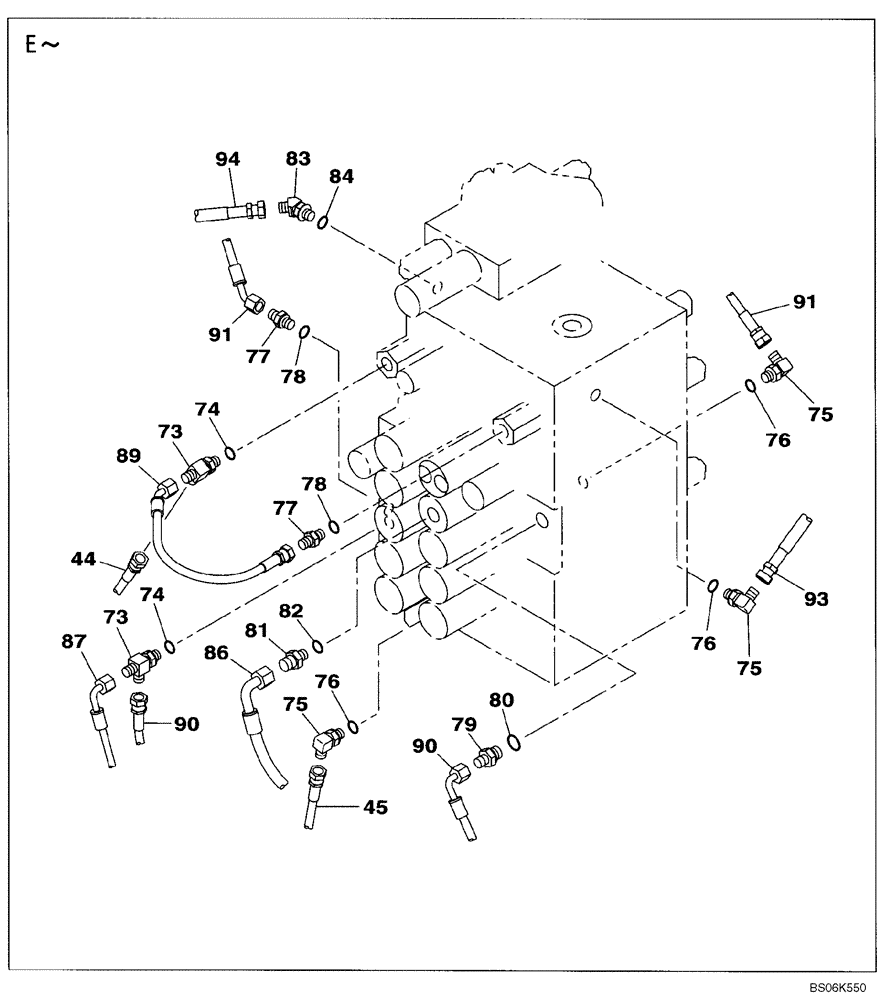

Запчасти Case CX210B (08-25) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

44

KHJ14920

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm

1шт.

45

KHJ2097

HOSE

1750 mm (68-7/8 in)

1шт.

73

159497A1

TEE

Incl. 74

2шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 76

3шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 78

2шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

153378A1

ADAPTER

Incl. 80

1шт.

80

154475A1

O-RING

1шт.

81

152747A1

ADAPTER

Incl. 82

1шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

150933A1

ELBOW

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

KHJ2106

HOSE

1600 mm (63 in)

1шт.

87

KHJ11170

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

1шт.

89

KHJ11180

HYDRAULIC HOSE,6.35 mm ID x 430.00 mm

350 mm (13-7/8 in)

2шт.

90

KHJ2181

HOSE

580 mm (22-13/16 in)

2шт.

91

KHJ2244

HOSE

600 mm (23-5/8 in)

2шт.

93

KHJ1231

HYDRAULIC HOSE,6.35 mm ID x 1800.00 mm

1шт.

94

KHJ12370

HYDRAULIC HOSE,6.35 mm ID x 2650.00 mm

1шт.
