Запчасти Case CX210B (08-24) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

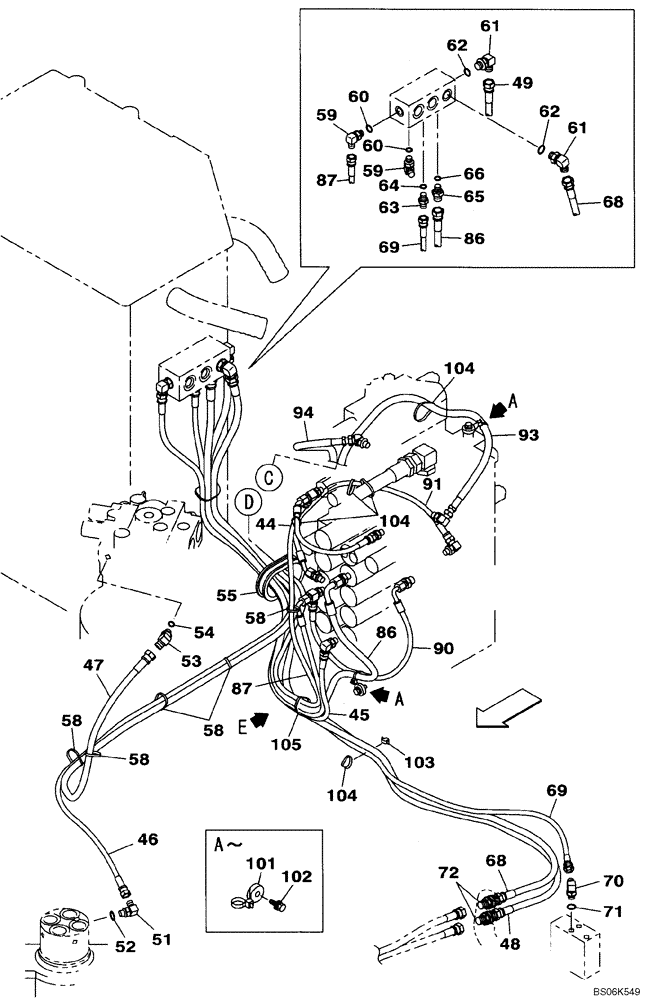

Схема запчастей Case CX210B - (08-24) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS
58
58
104
62
45
68
86
86
62
71
61
66
51
70
52
44
87
64
68
87
72
61
46
60
91
47
59
105
48
93
55
54
94
101
58
90
69
53
104
103
49
102
104
63
69
59
58
60
65

Артикул

Название

Примечание

Количество

44

KHJ14920

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm

1шт.

45

KHJ2097

HOSE

1750 mm (68-7/8 in)

1шт.

46

KHJ2166

HOSE,6.3mm ID x 2300mm L

2300 mm (90-9/16 in)

1шт.

47

KHJ14900

HYDRAULIC HOSE,9.52 mm ID x 2600.00 mm

1шт.

48

KHJ2107

HOSE,9.5mm ID x 2400mm L

2400 mm (94-1/2 in)

1шт.

49

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

51

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 52

1шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

53

161087A1

ELBOW

Incl. 54

1шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

MMA1011

RUBBER SEAL

1шт.

58

150496A1

MOUNTING CLIP

1шт.

59

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 60

2шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

61

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 62

2шт.

62

154475A1

O-RING

1шт.

63

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

152747A1

ADAPTER

Incl. 66

1шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

68

KHJ2625

HOSE

1шт.

69

KHJ2255

HOSE

1шт.

70

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 71

1шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

162826A1

ADAPTER

2шт.

86

KHJ2106

HOSE

1600 mm (63 in)

1шт.

87

KHJ11170

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

1шт.

90

KHJ2181

HOSE

580 mm (22-13/16 in)

1шт.

91

KHJ2244

HOSE

600 mm (23-5/8 in)

1шт.

93

KHJ1231

HYDRAULIC HOSE,6.35 mm ID x 1800.00 mm

1шт.

94

KHJ12370

HYDRAULIC HOSE,6.35 mm ID x 2650.00 mm

1шт.

101

KHR2584

CLAMP

4шт.

102

KHJ1215

BOLT,Spcl

4шт.

103

KHR10220

MOUNTING CLIP

1шт.

104

150496A1

MOUNTING CLIP

5шт.

105

150498A1

MOUNTING CLIP

1шт.

Выбрано товаров: 36
