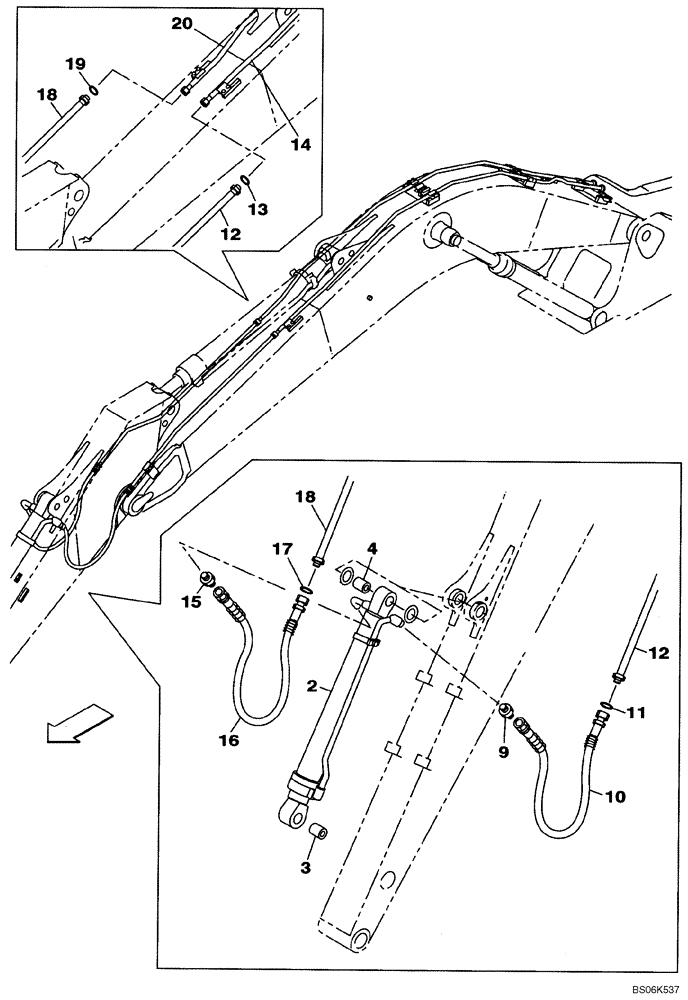

Запчасти Case CX210B (08-14) - HYDRAULICS - BUCKET, 2,9 METER (9 FT 6 IN) ARM (08) - HYDRAULICS

2

KRV19640

BUCKET CYLINDER

Incl. 3, 4; See Figure 08-86

1шт.

2

KRV33010R

REMAN-HYD CYLINDER

CX210B CRAWLER EXCAVATOR TIER 3 (NA), BUCKET, 2,9 METER (9 FT 6 IN) ARM (1/07-), Reman for New PN KRV19640

1шт.

2

KRV33010C

CORE-HYD CYLINDER

Return Number

1шт.

3

KRV2398

SELF LUB RING

1шт.

4

KRV2399

SELF LUB RING

1шт.

9

KHJ1348

ADAPTER

Replaces KHJ15840

1шт.

10

KRV12790

HYDRAULIC HOSE

Replaces KRV22580

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

Replaces KHJ1361

2шт.

12

KRV19070Y2

HYD TUBE

Replaces KRV21940

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

14

KRV19050Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

15

KHJ15840

ADAPTER

1шт.

16

KRV22580

HYDRAULIC HOSE,22.2mm ID x 1550mm L

1шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

18

KRV21950Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

19

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

20

KRV19060Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.
