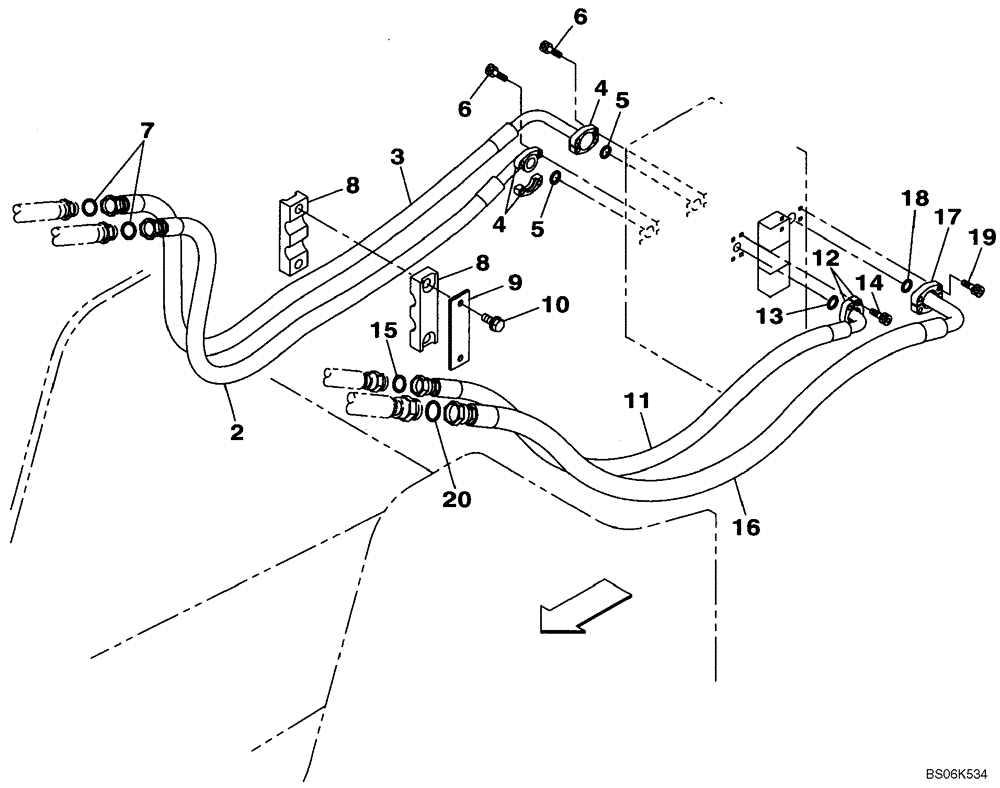

Запчасти Case CX210B (08-11) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

2

KBJ10440

HYDRAULIC HOSE,19.00 mm ID x 1790.00 mm

Replaces KRJ10820

1шт.

3

KBJ10450

HYDRAULIC HOSE,19.00 mm ID x 1760.00 mm

Replaces KRJ10830

1шт.

4

153458A1

FLANGE

Split

4шт.

5

155210A1

O-RING

2шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

8

KRJ10860

HOSE CLIP

2шт.

9

KRJ10870

PLATE

1шт.

10

166052A1

BOLT

2шт.

11

KRJ23310

HYDRAULIC HOSE,1300.00 mm

Replaces KRJ10850

1шт.

12

153458A1

FLANGE

Split

2шт.

13

155210A1

O-RING

1шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

15

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

16

KRJ23320

HYDRAULIC HOSE,1480.00 mm

Replaces KRJ10840

1шт.

17

153459A1

FLANGE

Split

2шт.

18

155211A1

O-RING

1шт.

19

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

20

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.
