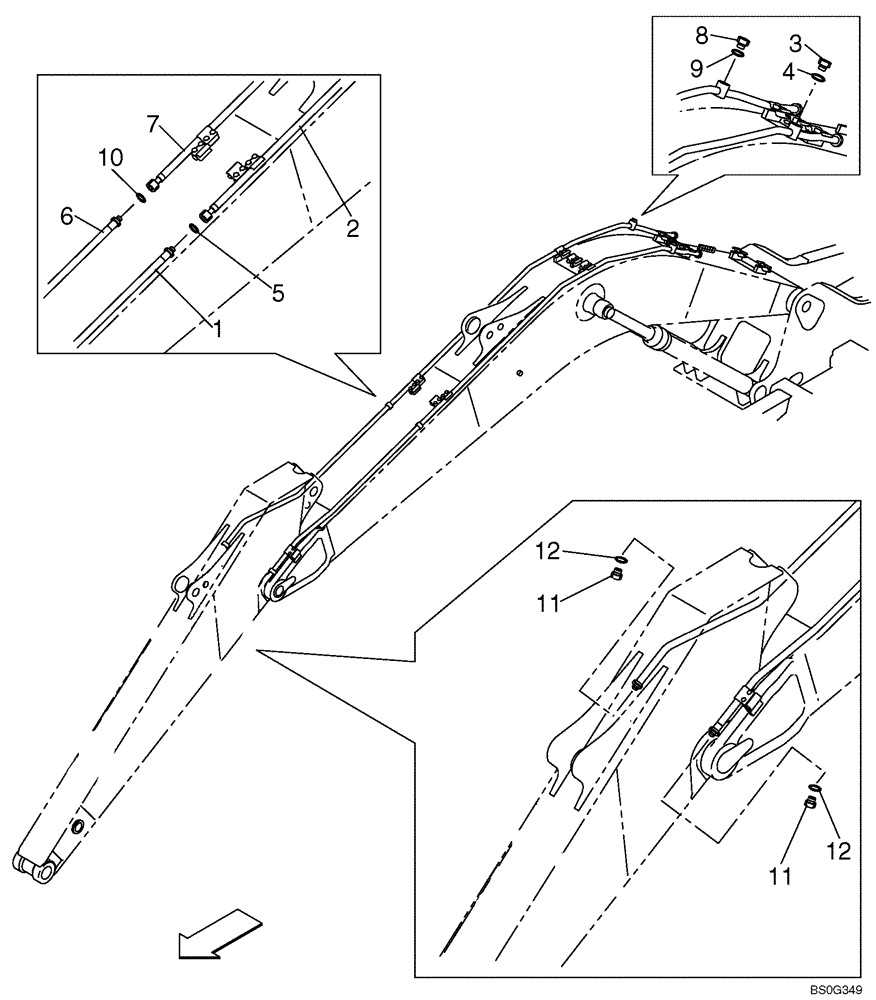

Запчасти Case CX160B (08-14) - HYDRAULIC LINES - BOOM - OPTIONAL (08) - HYDRAULICS

KG0LV221

HYDRAULIC LINES - BOOM - OPTIONAL

1шт.

1

KLV12380Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD Adaptor

L

1шт.

2

KLV13700

HYD TUBE,Dia 27.2

L

1шт.

3

152924A1

PLUG

Incls. Ref. 4

1шт.

4

154503A1

O-RING

1шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

6

KLV12390Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

R

1шт.

7

KLV13710

HYD TUBE,Dia 27.2

R

1шт.

8

152924A1

PLUG

Incls. Ref. 9

1шт.

9

154503A1

O-RING

1шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

11

KHJ1898

PLUG

2шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.
