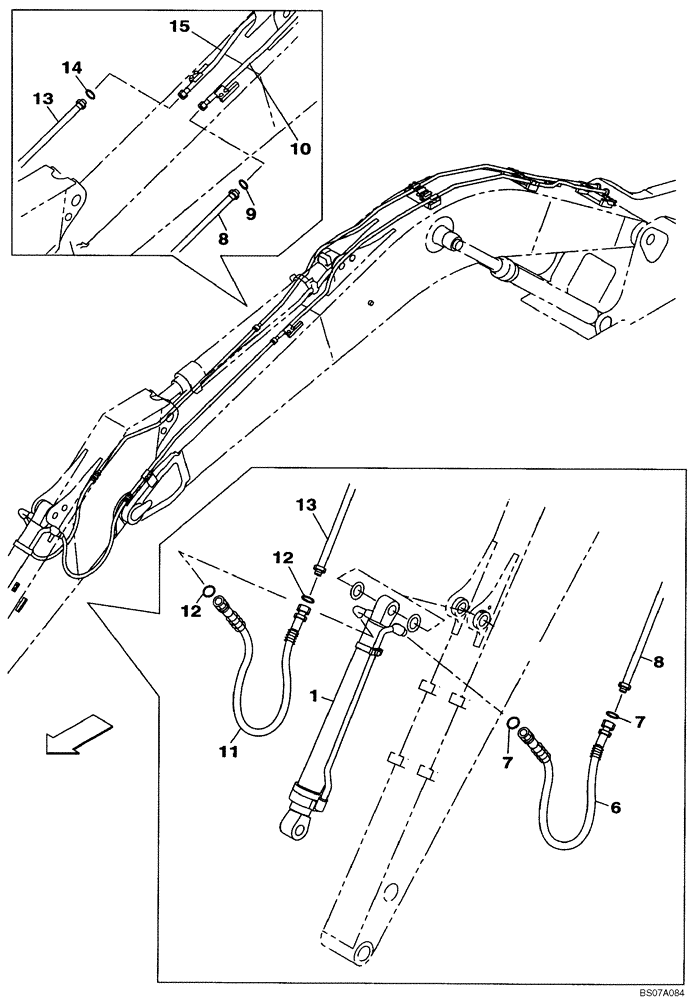

Запчасти Case CX160B (08-13) - HYDRAULICS - BUCKET LINE (08) - HYDRAULICS

1

KLV11081

BUCKET CYLINDER

See Figure 08-86, Replaces KLV11080

1шт.

1

KLV11081R

REMAN-HYD CYLINDER

CX160B CRAWLER EXCAVATOR TIER 3 (NA), BUCKET LINE (1/07-)

1шт.

1

KLV11081C

CORE-HYD CYLINDER

Return Number

1шт.

6

KLV11470

HOSE ASSY.,19.00 mm ID x 1200.00 mm

(For a 2.62m Arm)

1шт.

6

KLV13720

HOSE ASSY.,1550.00 mm

(For a 2.23m Arm)

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

6

KLV12910

HOSE ASSY.,1650.00 mm

(For a 3.05m Arm)

1шт.

8

KLV12530Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

10

KLV12510Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

10a

KHJ1348

ADAPTER

Not Shown

1шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

11

KLV11470

HOSE ASSY.,19.00 mm ID x 1200.00 mm

(For a 2.62m Arm)

1шт.

13

KLV12540Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

11

KLV13720

HOSE ASSY.,1550.00 mm

(For a 2.23m Arm)

1шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

15

KLV12520Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

11

KLV12910

HOSE ASSY.,1650.00 mm

(For a 3.05m Arm)

1шт.
