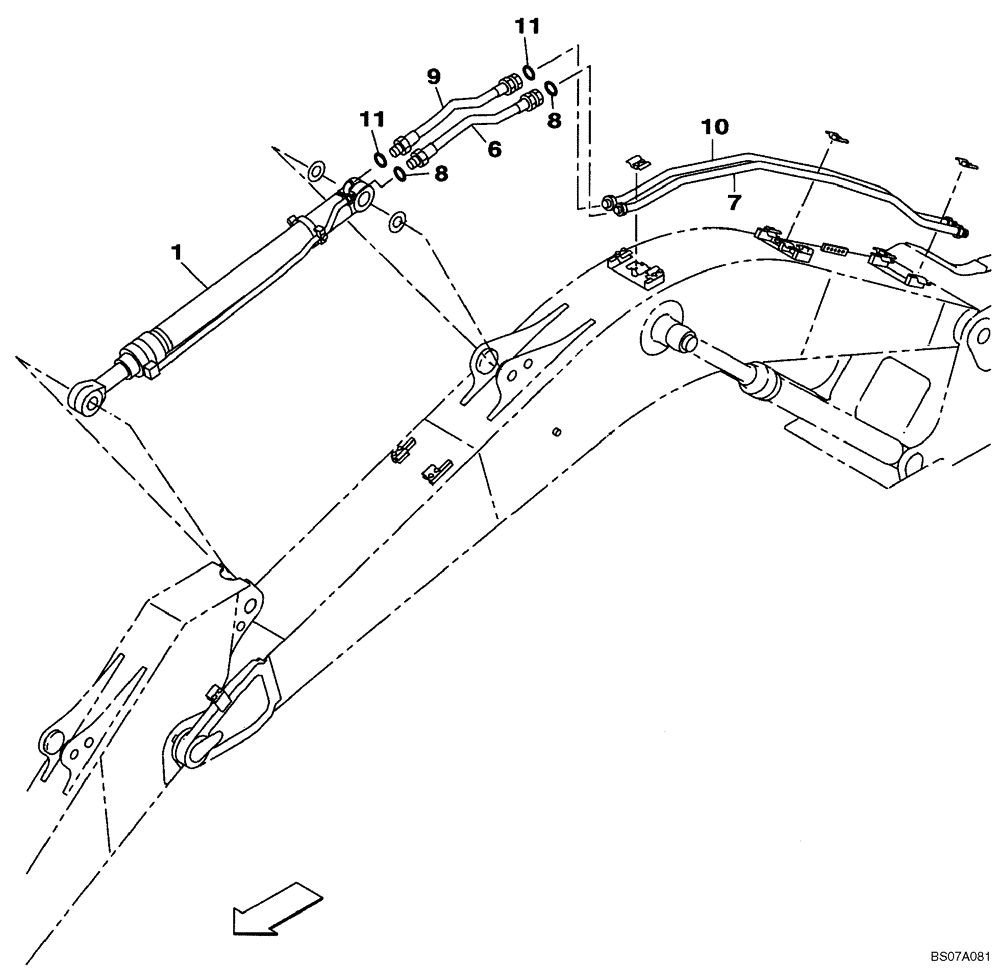

Запчасти Case CX160B (08-12) - HYDRAULICS - ARM CYLINDER LINE (08) - HYDRAULICS

1

KLV11040

HYDRAULIC CYLINDER

Arm; See Figure 08-85

1шт.

1

KLV11040R

REMAN-HYD CYLINDER

CX160B CRAWLER EXCAVATOR TIER 3 (NA), Arm (1/07-)

1шт.

1

KLV11040C

CORE-HYD CYLINDER

Return Number

1шт.

6

KLV11420

HOSE ASSY.,19.00 mm ID x 900.00 mm

1шт.

7

KLV12500Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

8

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

9

KLV11420

HOSE ASSY.,19.00 mm ID x 900.00 mm

1шт.

10

KLV12500Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.
