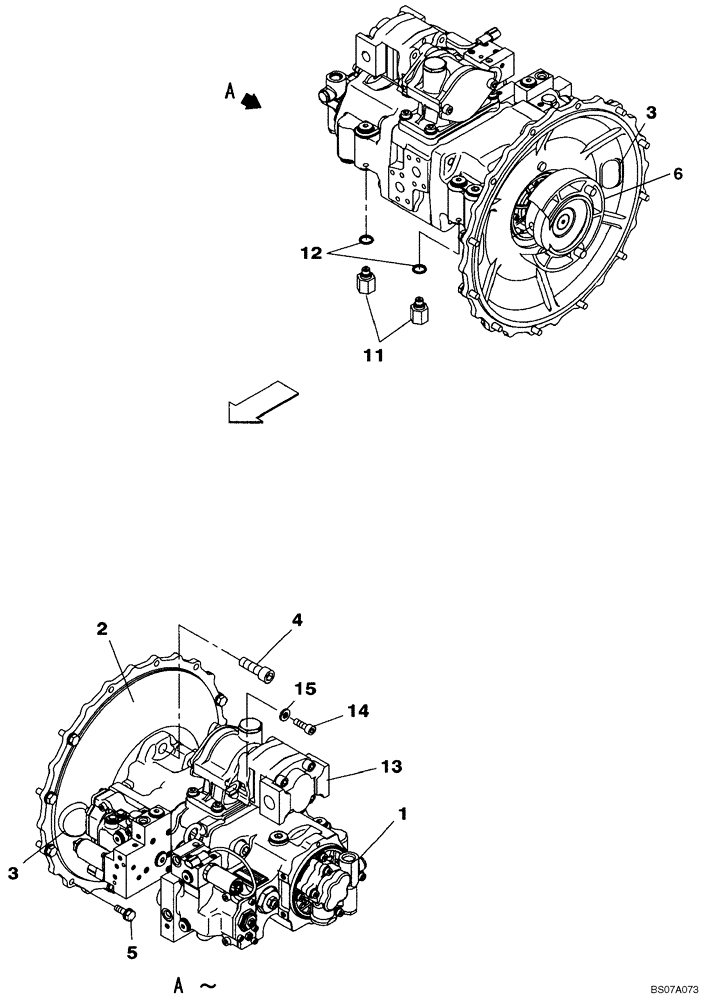

Запчасти Case CX160B (08-04) - PUMP ASSY, HYDRAULIC - WITH AUXILIARY HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KLJ10610

HYDRAULIC PUMP

See Figure 08-92 - 08-97

1шт.

1

KLJ10571R

REMAN-HYD PUMP

CX160B CRAWLER EXCAVATOR TIER 3 (NA), WITH AUXILIARY HYDRAULIC, COUPLING (1/07-), Reman for New PN KLJ10610

1шт.

1

KLJ10571C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

KNJ10650R

REMAN-HYD PUMP

CX160B CRAWLER EXCAVATOR TIER 3 (NA), HYDRAULIC - WITH AUXILIARY HYDRAULIC - COUPLING (1/07-), Reman for New PN KLJ10610

1шт.

1

KNJ10650C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KNJ11750

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

108R016Y045R

BOLT

2шт.

5

166347A1

BOLT,Sems, M10 x 30mm

9шт.

6

KMJ2660

COUPLING FLANGE

1шт.

11

KHJ18180

STUD

Incl. 12, Replaces KHJ11380

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

KNJ10650

HYDRAULIC PUMP

See Figure 08-98

1шт.

13

KNJ10650R

REMAN-HYD PUMP

CX160B CRAWLER EXCAVATOR TIER 3 (NA), HYDRAULIC - WITH AUXILIARY HYDRAULIC - COUPLING (1/07-)

1шт.

13

KNJ10650C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

15

150409A1

WASHER

2шт.

16

154697A1

O-RING

Not Illustrated

1шт.
