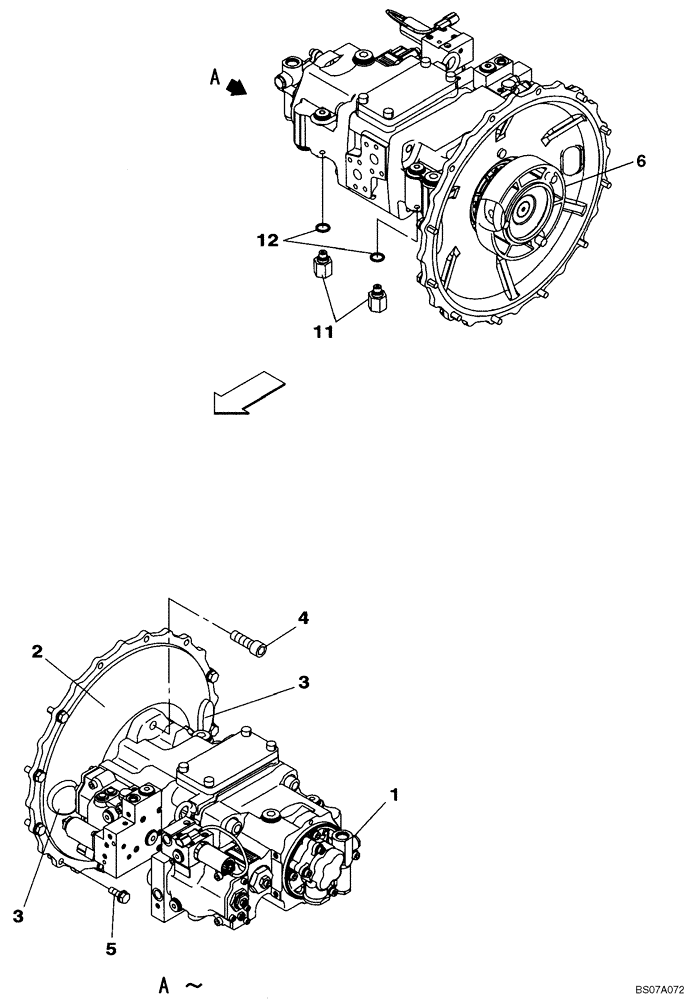

Запчасти Case CX160B (08-03) - PUMP ASSY, HYDRAULIC - STANDARD - COUPLING (08) - HYDRAULICS

1

KLJ10570

HYDRAULIC PUMP

See Figure 08-87 - 08-91

1шт.

1

KLJ10571R

REMAN-HYD PUMP

CX160B CRAWLER EXCAVATOR TIER 3 (NA), STANDARD, COUPLING (1/07-), Reman for New PN KLJ10570

1шт.

1

KLJ10571C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

KNJ11750

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

108R016Y045R

BOLT

2шт.

5

166347A1

BOLT,Sems, M10 x 30mm

9шт.

6

KMJ2660

COUPLING FLANGE

1шт.

11

KHJ18180

STUD

Incl. 12, Replaces KHJ11380

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
