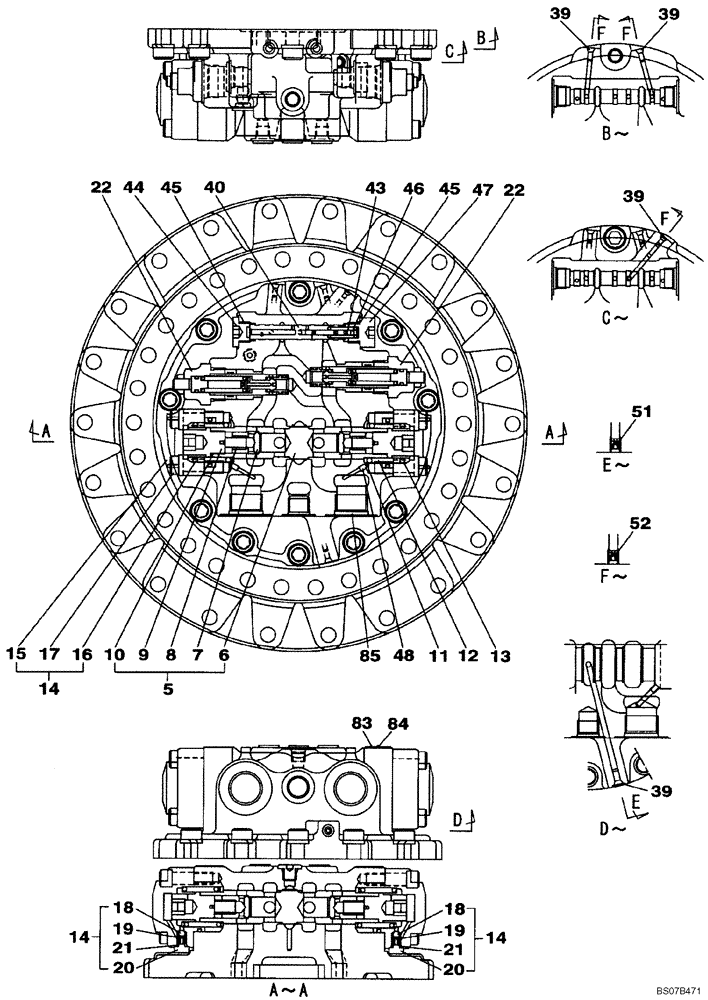

Запчасти Case CX160B (06-04) - MOTOR ASSY - TRAVEL, INLET AND OUTLET (06) - POWER TRAIN

KLA10030

MOTO-REDUCTION GEAR

Includes All Parts On Figures 06-02 - 06-04

1шт.

KLA10030R

REMAN-MOTO REDUCTION

CX160B CRAWLER EXCAVATOR TIER 3 (NA) (1/07-)

1шт.

KLA10030C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

NSS

NOT SOLD SEPARAT

Motor, Piston; Includes 5 - 86; Also Includes Parts On Figures 06-02, 06-03

1шт.

5

NSS

NOT SOLD SEPARAT

Spool Assy; Incl. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, Check

2шт.

8

NSS

NOT SOLD SEPARAT

Spring

2шт.

9

NSS

NOT SOLD SEPARAT

Plug

2шт.

10

154495A1

O-RING

2шт.

11

156110A1

SPRING SEAT

2шт.

12

LG006200

SPRING

Spring

2шт.

13

LR015850

SPRING SEAT

Seat, Spring

2шт.

14

LR015840

PLUG

Cap Assy; Incl. 15 - 21

2шт.

15

NSS

NOT SOLD SEPARAT

Cap

1шт.

16

154589A1

O-RING

1шт.

17

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

4шт.

18

155976A1

BALL

Ball

1шт.

19

156106A1

SPRING

Spring

1шт.

20

NSS

NOT SOLD SEPARAT

Plug

1шт.

21

154455A1

O-RING

1шт.

22

160565A1

VALVE

See Figure 06-03

2шт.

39

NSS

NOT SOLD SEPARAT

Plug

4шт.

40

NSS

NOT SOLD SEPARAT

Spool; See Figure 06-03

1шт.

43

LG00343

COMPRESSION SPRING

1шт.

44

LK00329

PLUG

1шт.

45

154487A1

O-RING

2шт.

46

LS00127

GUIDE

1шт.

47

LK00306

PLUG

1шт.

48

NSS

NOT SOLD SEPARAT

Orifice

2шт.

51

156872A1

ORIFICE

4шт.

52

164485A1

ORIFICE

3шт.

83

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

84

NSS

NOT SOLD SEPARAT

Screw

2шт.

85

NSS

NOT SOLD SEPARAT

Plug

2шт.

LZ007960

SEAL KIT

Incl. 10, 16, 21, 45; Also Includes Parts On Figure 06-03

1шт.

LZ008650

REPAIR KIT

Incl. 5 - 10, 39, 40, 48, 51; Also Includes Parts On Figure 06-03

1шт.
