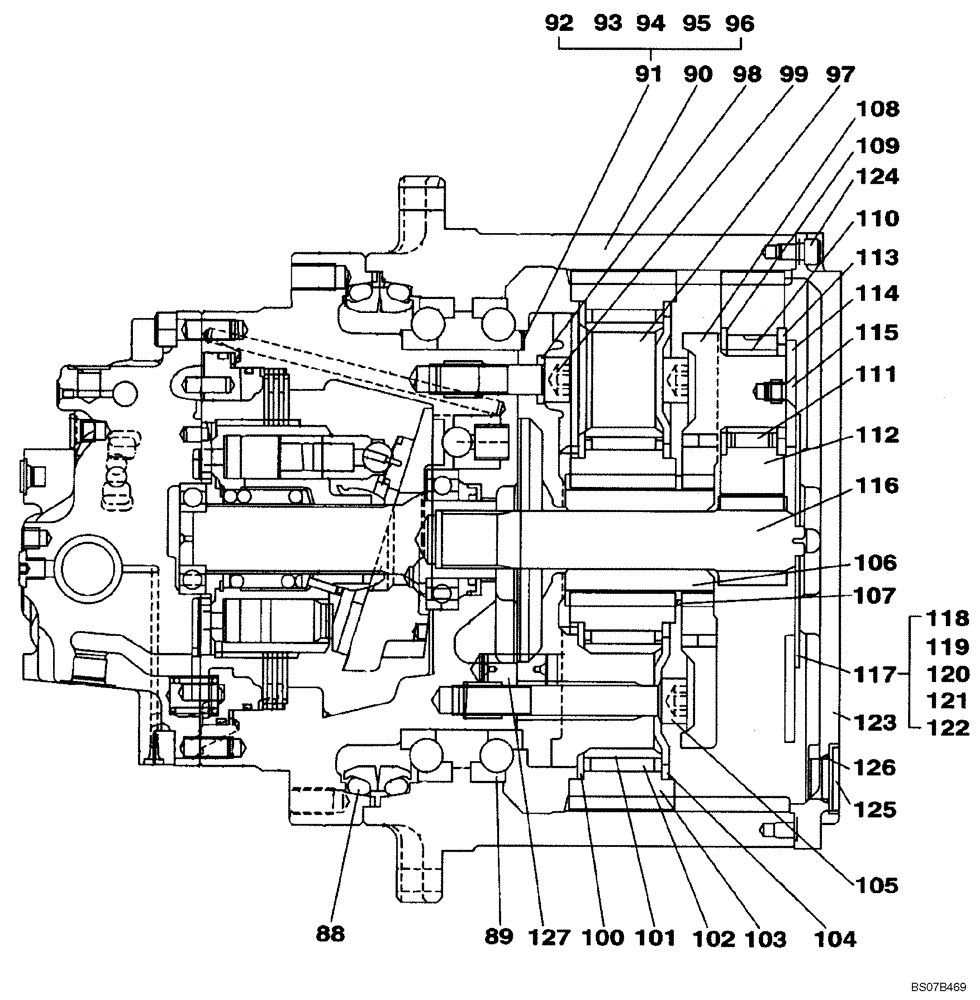

Запчасти Case CX160B (06-02) - MOTOR ASSY - GEAR ASSY, REDUCTION (06) - POWER TRAIN

KLA10030

MOTO-REDUCTION GEAR

Includes All Parts On Figures 06-02 - 06-04

1шт.

KLA10030R

REMAN-MOTO REDUCTION

CX160B CRAWLER EXCAVATOR TIER 3 (NA) (1/07-)

1шт.

KLA10030C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

LN002060

REDUCER

Reduction Gear; Incl. 88 - 127, Also Includes Ref 2, 66 On Figures 06-03

1шт.

88

LE01126

SEAL

2шт.

89

LB00548

BEARING

2шт.

90

NSS

NOT SOLD SEPARAT

Housing

1шт.

91

LH00254

SHIM KIT

Incl. 92 - 96

1шт.

92

NSS

NOT SOLD SEPARAT

Shim, 0.05 mm

1шт.

93

NSS

NOT SOLD SEPARAT

Shim, 0.1 mm

1шт.

94

NSS

NOT SOLD SEPARAT

Shim, 0.3 mm

1шт.

95

NSS

NOT SOLD SEPARAT

Shim, 0.5 mm

1шт.

96

NSS

NOT SOLD SEPARAT

Shim, 1.0 mm

1шт.

97

LS003500

SUPPORT

Holder

1шт.

98

LA00702

WASHER

6шт.

99

LA00703

BOLT

6шт.

100

LR00583

PLATE

3шт.

101

LB00549

RING RACE

3шт.

102

LB011790

NEEDLE BEARING

3шт.

103

LC00163

SUN GEAR

3шт.

104

LR015040

THRUST PLATE

3шт.

105

LA00704

BOLT

3шт.

106

LC002880

SUN GEAR

1шт.

107

LA00705

RING, SNAP

RING SNAP

1шт.

108

LS003350

SUPPORT

1шт.

109

LR00585

PLATE

3шт.

110

LB011800

BEARING

3шт.

111

LB011810

NEEDLE BEARING

3шт.

112

LC002890

IDLER PINION

3шт.

113

LR00586

PLATE

3шт.

114

LR015050

THRUST PLATE

1шт.

115

LV00029

SCREW

3шт.

116

LC002900

GEAR

1шт.

117

LR00588

DISC

Incl. 118 - 122

1шт.

118

NSS

NOT SOLD SEPARAT

Plate, Thrust; 3.6 mm

1шт.

119

NSS

NOT SOLD SEPARAT

Plate, Thrust; 2.3 mm

1шт.

120

NSS

NOT SOLD SEPARAT

Plate, Thrust; 2.8 mm

1шт.

121

NSS

NOT SOLD SEPARAT

Plate, Thrust; 3.0 mm

1шт.

122

NSS

NOT SOLD SEPARAT

Plate, Thrust; 3.2 mm

1шт.

123

LW005570

COVER

Replaces LW00316

1шт.

124

108R010Z016N

BOLT

16шт.

125

165681A1

PLUG

3шт.

126

154503A1

O-RING

3шт.

127

160104A1

PIN

4шт.

LZ006890

REPAIR KIT

Incl. 88, 126

1шт.
