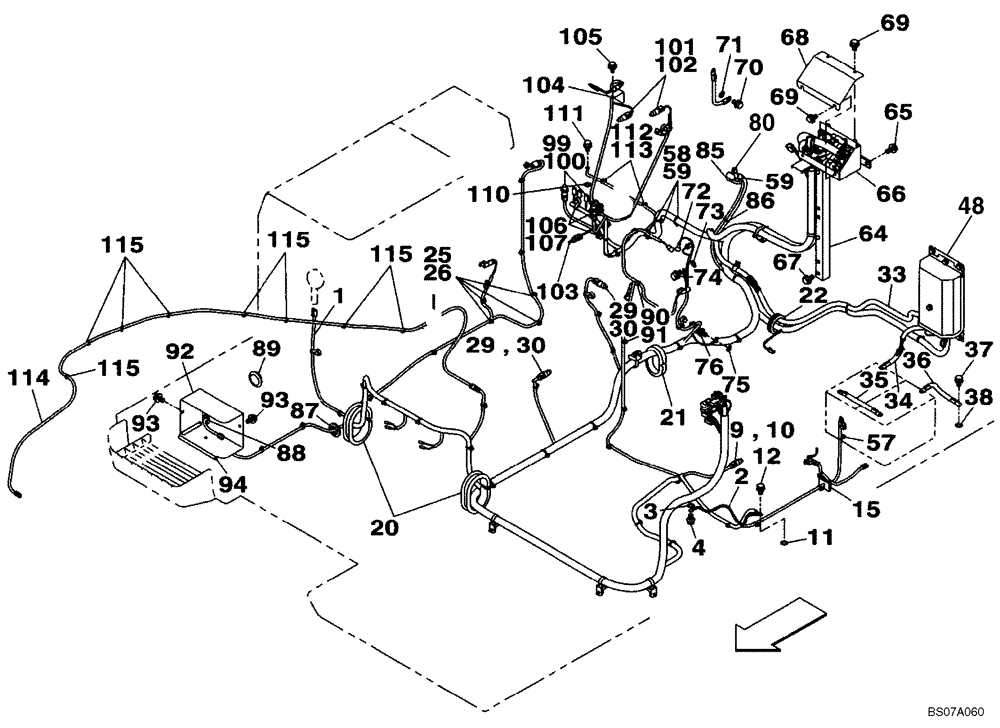

Запчасти Case CX160B (04-05) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
KLR10280
HARNESS
1шт.
2
KHR11090
GROUND CABLE
1шт.
2
KHR28730
GROUND CABLE
For ROPS Cab Only
1шт.
3
893-11008
LOCK WASHER,Ext Tooth, M8
1шт.
4
167518A1
BOLT
1шт.
9
KHR10300
SENSOR,5 MPa
Pilot Pressure Incl. 10
1шт.
10
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
11
893-11008
LOCK WASHER,Ext Tooth, M8
1шт.
12
167518A1
BOLT
1шт.
15
KLR10260
SEAL
1шт.
20
160414A1
RUBBER BLOCK
2шт.
21
152579A1
CUSHION
1шт.
22
152117A1
GROMMET
1шт.
25
KHR10220
MOUNTING CLIP
4шт.
26
150496A1
MOUNTING CLIP
4шт.
29
KHR10300
SENSOR,5 MPa
Pilot Pressure Incl. 30
2шт.
30
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
33
KHR12920
ELECTRIC CABLE
Battery
1шт.
34
KHR13910
POS BATTERY CABLE
Battery
1шт.
35
KHR15070
NEG BATTERY CABLE
Battery
1шт.
36
KHR11080
ELECTRIC CABLE
Battery
1шт.
37
167518A1
BOLT
1шт.
38
893-11008
LOCK WASHER,Ext Tooth, M8
1шт.
48
REF
INSTRUCTION
Relay and Cover; See Figure 04-06
1шт.
57
150496A1
MOUNTING CLIP
1шт.
58
KHR10220
MOUNTING CLIP
3шт.
59
150496A1
MOUNTING CLIP
4шт.
64
KLR10190
SUPPORT ASSY.
1шт.
65
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
66
KLR10170
BRACKET
1шт.
67
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
68
KLR10180
COVER
1шт.
69
166345A1
BOLT
4шт.
70
KHJ2298
BOLT,Spcl
1шт.
71
893-11010
LOCK WASHER,Ext Tooth, M10
1шт.
72
159179A1
PROTECTION CAP
1шт.
73
893-11006
LOCK WASHER,Ext Tooth, M6
1шт.
74
156559A1
BOLT,High Strength, Hex, M6 x 12mm, W/ LW
1шт.
75
893-11008
LOCK WASHER,Ext Tooth, M8
1шт.
76
167518A1
BOLT
1шт.
80
REF
INSTRUCTION
Cap; See Figure 04-06
1шт.
85
159179A1
PROTECTION CAP
1шт.
86
150496A1
MOUNTING CLIP
2шт.
87
165984A1
GROMMET
1шт.
88
159656A1
GROMMET
1шт.
89
KHN11510
GROMMET
1шт.
90
KHR10220
MOUNTING CLIP
1шт.
91
150496A1
MOUNTING CLIP
1шт.
92
KHR14420
BRACKET
1шт.
93
166345A1
BOLT
2шт.
94
KHR14920
SEAL PROTECTION
1шт.
99
KHR10290
SENSOR
SENSOR PRESS. Incl. 100
2шт.
100
154483A1
O-RING
Replaces UCP0101
1шт.
101
KHR10300
SENSOR,5 MPa
Pilot Pressure Incl. 102
2шт.
102
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
103
KHR2433
SENSOR
Hydraulic Oil Temperature
1шт.
104
KLR10230
BRACKET
1шт.
105
166345A1
BOLT
1шт.
106
KHR2584
CLAMP
2шт.
107
KHJ1215
BOLT,Spcl
2шт.
110
893-11008
LOCK WASHER,Ext Tooth, M8
1шт.
111
167518A1
BOLT
1шт.
112
KHR10220
MOUNTING CLIP
2шт.
113
150496A1
MOUNTING CLIP
2шт.
114
KHR11160
WIRE HARNESS
1шт.
115
150496A1
MOUNTING CLIP
10шт.
116
KHR32760
SWITCH
Battery master switch - not illustrated
1шт.
117
KHR34680
ROTARY SWITCH
Battery master switch, lock key - not illustrated
1шт.
Выбрано товаров: 68
