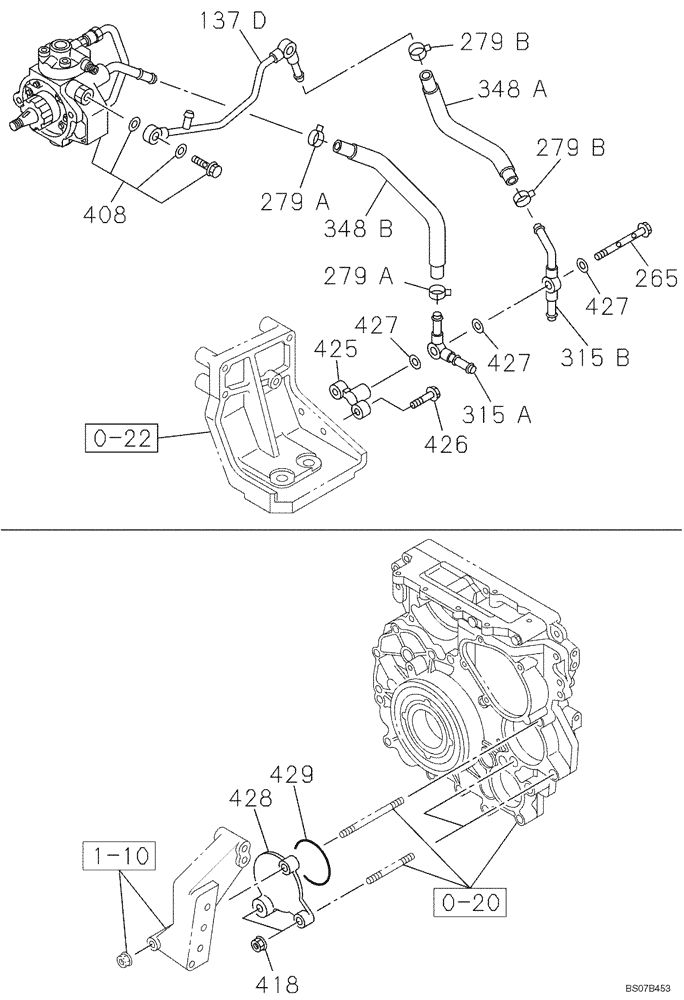

Запчасти Case CX160B (03-05) - FUEL SYSTEM (03) - FUEL SYSTEM

0-20

REF

INSTRUCTION

See Figure 02-18

1шт.

0-22

REF

INSTRUCTION

See Figure 02-20

1шт.

1-10

REF

INSTRUCTION

See Figure 02-33

1шт.

137d

87598441

RETURN PIPE

1шт.

265

87710949

HOLLOW SCREW

Replaces 87616586

1шт.

279a

87598832

CLIP

2шт.

279b

87598834

CLIP

2шт.

315a

426417A1

PIPE

Replaces 87598845

1шт.

315b

87598846

PIPE

1шт.

348a

87598849

FUEL HOSE

1шт.

348b

87598851

FUEL HOSE

1шт.

408

87560086

FUEL INJECTION PUMP

Assy, Incl 409

1шт.

87560086R

REMAN-FUEL INJ PUMP

CX160B TIER 3 (NA) (1/07-)

1шт.

87560086C

CORE-FUEL INJ PUMP

Return Number

1шт.

409

47984058

SOLENOID

Solenoid Valve, Not Illustrated, Serial Range: -05-2009

1шт.

409

84591261

KIT

Solenoid Valve, Not Illustrated, Start Serial: 05-2009

1шт.

418

87595428

NUT

2шт.

425

84198687

BRACKET, SUPPORTING

BRACKET, Replaces 87598852

1шт.

426

87595918

BOLT

2шт.

427

87559647

OIL PAN GASKET SET

3шт.

428

87598853

COVER

1шт.

429

87598854

GASKET

1шт.
