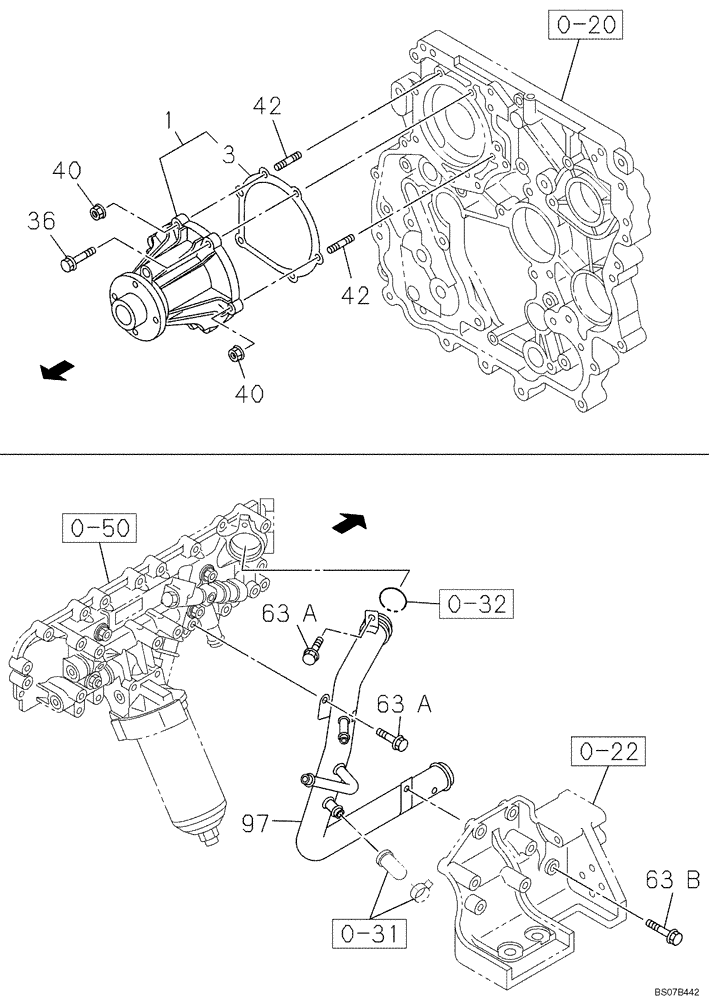

Запчасти Case CX160B (02-24) - WATER PUMP SYSTEM (02) - ENGINE

0-20

REF

INSTRUCTION

See Figure 02-18

1шт.

0-22

REF

INSTRUCTION

See Figure 02-20

1шт.

0-31

REF

INSTRUCTION

See Figure 02-25

1шт.

0-32

REF

INSTRUCTION

See Figure 02-26

1шт.

0-50

REF

INSTRUCTION

See Figure 02-29

1шт.

1

87597704

WATER PUMP

1шт.

1

87597704R

REMAN-WATER PUMP

CX160B CRAWLER EXCAVATOR TIER 3 (NA) (1/07-)

1шт.

1

87597704C

CORE-WATER PUMP

Return Number

1шт.

3

87597706

GASKET

1шт.

36

87595839

BOLT

4шт.

40

87595428

NUT

2шт.

42

87597716

STUD

2шт.

63a

87595866

BOLT

2шт.

63b

87596055

BOLT

1шт.

97

87597722

PIPE

1шт.
