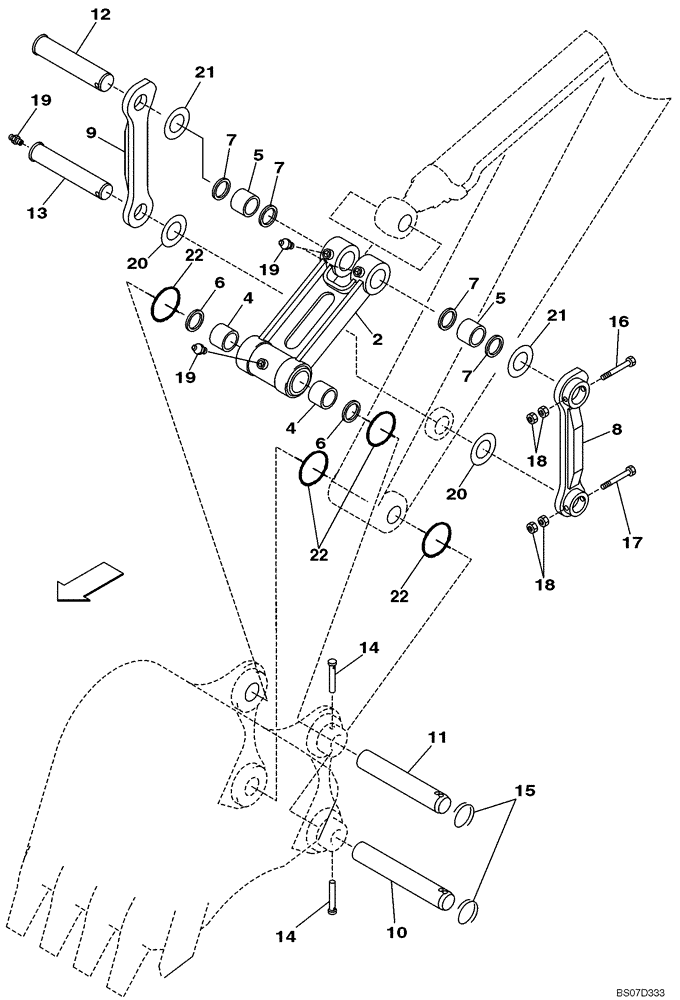

Запчасти Case CX160B (09-56) - BUCKET LINKAGE, MODELS WITH AUXILIARY HYDRAULICS (09) - CHASSIS/ATTACHMENTS

Heavy Duty

1шт.

KLV0344

POWER ARM

Bucket, Standard, Incl. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Bucket

1шт.

4

150264A1

BUSHING,80mm ID x 95mm OD x 65mm L

2шт.

5

160718A1

BUSHING,75mm ID x 90mm OD x 75mm L

2шт.

6

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.

7

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

4шт.

8

KLV0346

LINKAGE YOKE

1шт.

9

KLV0347

LINKAGE YOKE

1шт.

10

169280A1

PIN,80mm OD x 525mm L

1шт.

11

169281A1

PIN,80.9mm OD x 478mm L

1шт.

12

KLV0348

PIN

1шт.

13

KLV0326

PIN

1шт.

14

153748A1

PIN,20mm OD x 125mm L

2шт.

15

153749A1

RING

2шт.

16

514-1038

BOLT,Hex, M16 x 1.5 x 160mm, Cl 10.9

1шт.

17

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

1шт.

18

829-13416

NUT,M16 x 1.5, Cl 10

4шт.

19

153630A1

LUBE NIPPLE

4шт.

20

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

2шт.

21

160404A1

SHIM

1,30 mm (0,051 in)

2шт.

22

160402A1

O-RING

122 mm ID x 8 mm thick

4шт.
