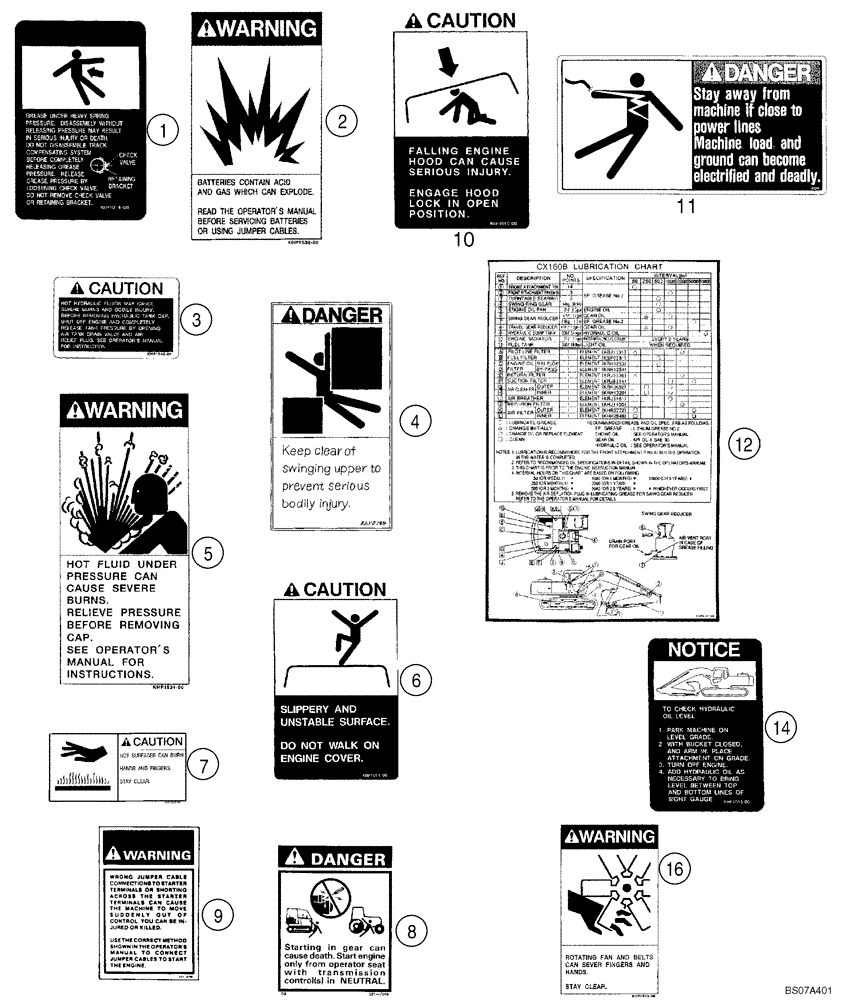

Запчасти Case CX160B (09-48) - DECALS - WARNING (09) - CHASSIS/ATTACHMENTS

1

167327A1

WARNING DECAL

Grease Under Heavy Spring Pressure

2шт.

2

KHP1536

WARNING DECAL

Warning, Batteries Contain Acid And Explosive Gas

1шт.

3

KHP1542

WARNING DECAL

Caution, Hot Liquid Hazard

1шт.

4

KHP1532

WARNING DECAL

Danger, Keep Clear; Replaces RAP0144

2шт.

5

KHP1534

WARNING DECAL

Warning, Hot Fluid Under Pressure

1шт.

6

KHP1011

DECAL

Caution, Slippery And Unstable Surface

1шт.

7

KHP1535

WARNING DECAL

Caution, Hot Surfaces

3шт.

8

86982724

DECAL

Danger, Starting In Gear

1шт.

9

321-6872

DECAL

Warning, Jumper Cables

1шт.

10

KHP1010

DECAL

Caution, Falling Engine Hood

1шт.

11

167324A1

WARNING DECAL

Danger, Stay Away From Machine If Close To Power Lines

1шт.

12

KLP10350

DECAL

Lubrication Chart

1шт.

14

167328A1

DECAL

Notice, Check Hydraulic Fluids

1шт.

16

KHP1533

WARNING DECAL

Warning, Rotating Fan

1шт.

17

KHP11681

DECAL

Warning; Not Illustrated

1шт.

18

KHP12210

DECAL

Warning; Not Illustrated

1шт.

19

KHP1722

ADHESIVE

Warning; Located On Undercarriage; Not Illustrated

4шт.
