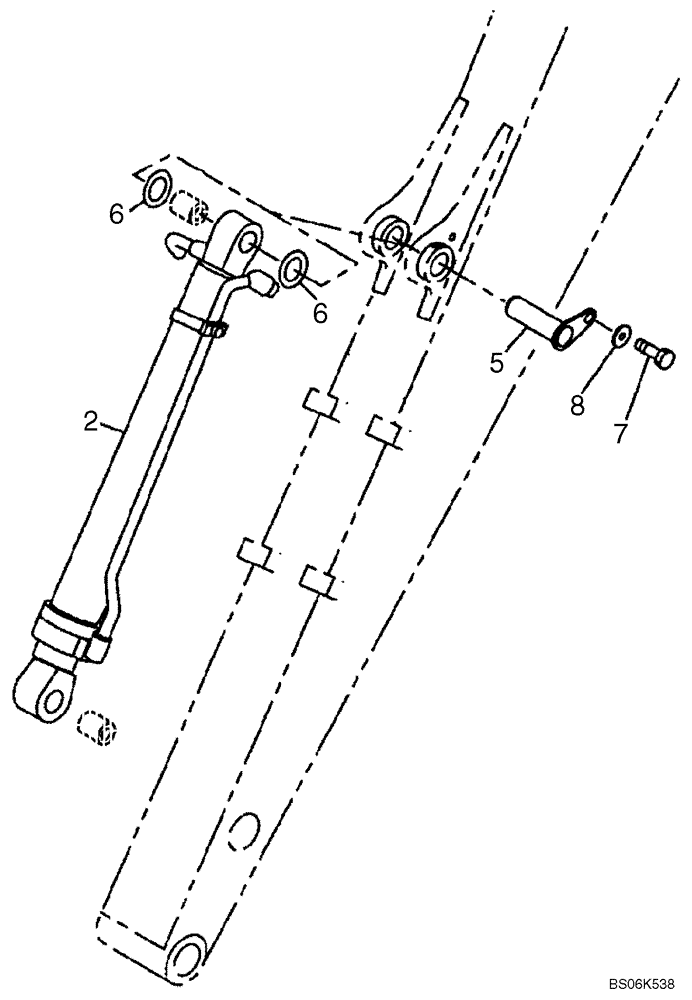

Запчасти Case CX160B (09-40) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

2

KLV11081

BUCKET CYLINDER

See Figure 08-86, Replaces KLV11080

1шт.

2

KLV11081R

REMAN-HYD CYLINDER

CX160B CRAWLER EXCAVATOR TIER 3 (NA), MOUNTING (1/07-)

1шт.

2

KLV11081C

CORE-HYD CYLINDER

Return Number

1шт.

5

KLV11280

PIN

1шт.

6

150142A1

SHIM KIT

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

157141A1

WASHER

1шт.
