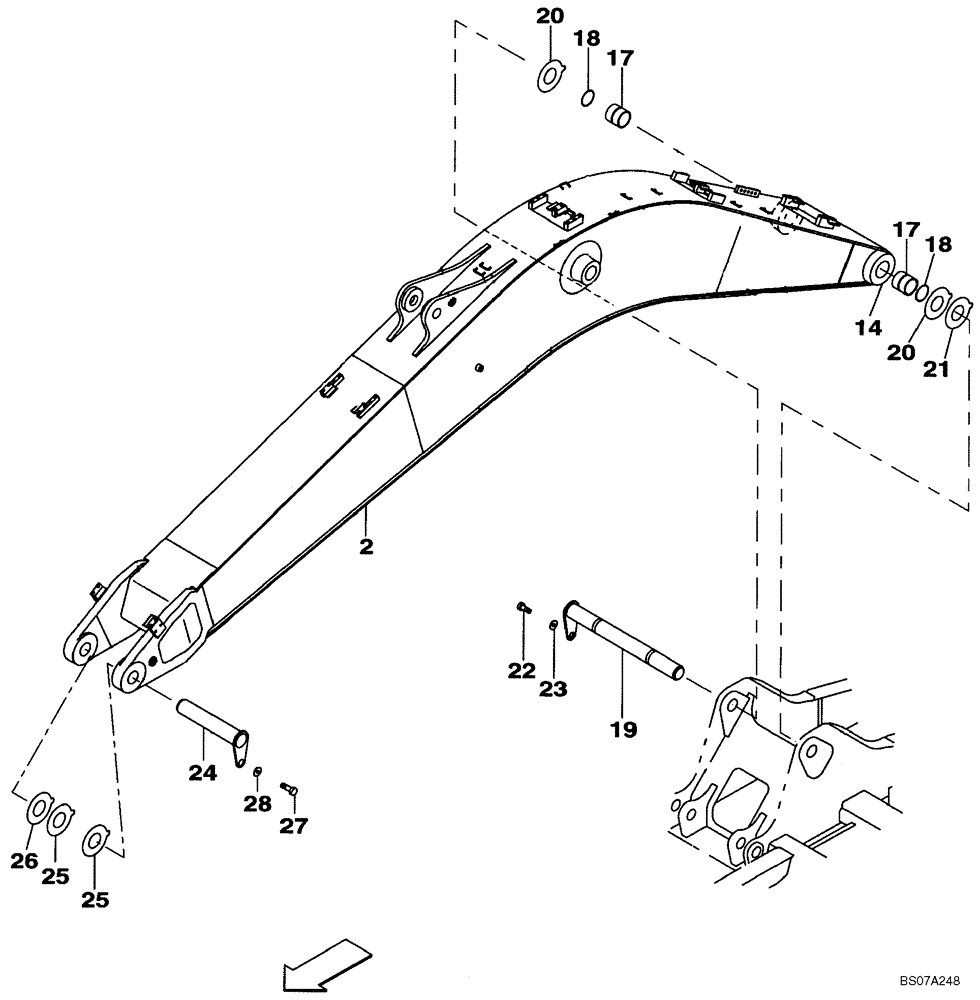

Запчасти Case CX160B (09-35) - BOOM (09) - CHASSIS/ATTACHMENTS

KLV11961

BOOM

Incl. 2, 17, 18, Replaces KLV11960

1шт.

2

NSS

NOT SOLD SEPARAT

Boom

1шт.

17

KRV1388

SELF LUB RING

2шт.

18

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.

19

KLV12580

PIN

1шт.

20

KLV11140

SHIM

2шт.

21

KLV11150

SHIM

1шт.

22

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

23

157141A1

WASHER

1шт.

24

KLV11270

PIN

1шт.

25

KLV11140

SHIM

2шт.

26

KLV11150

SHIM

1шт.

27

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

28

157141A1

WASHER

1шт.
